Air pump f vacuum control for BMW X5 E53 4.4i

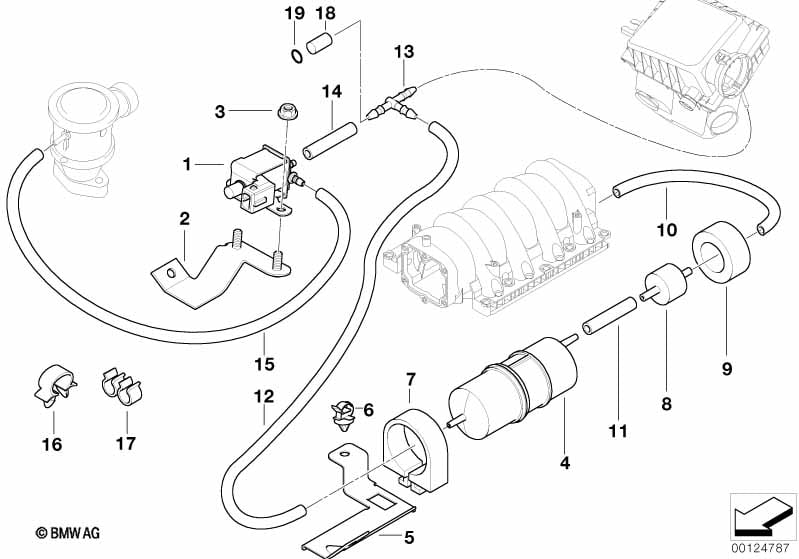

This Air pump f vacuum control technical drawing provides a detailed breakdown of the assembly for the X5 E53 4.4i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.valve | 1 | 11741742711 | $46.70 | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 11721702162 | $6.78 | Shop at ECS Tuning | |||||
| 03 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Container | 1 | 11611312762 | $7.60 | Shop at ECS Tuning | |||||
| 05 | Holder | 1 | 11731715260 | $21.62 | Shop at ECS Tuning | |||||
| 06 | Clip retainer | 1 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 07 | Rubber Mounting | 1 | 13411705564 | $2.40 | +core | Shop at ECS Tuning | ||||
| 08 | non-return valve | 1 | 11611312737 | $17.70 | Shop at ECS Tuning | |||||
| 09 | Protective hose | 1 | 11731745265 | $1.57 | Shop at ECS Tuning | |||||
| 10 | Hose | 395MM | 1 | 11731438139 | $5.37 | Shop at ECS Tuning | ||||
| 11 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 12 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 15 | Vacuum hose blue | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 17 | Tubing support | D=10,8MM | 1 | 64111364073 | $0.57 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
