Engine block for BMW 7 Series E66 760Li (2008)

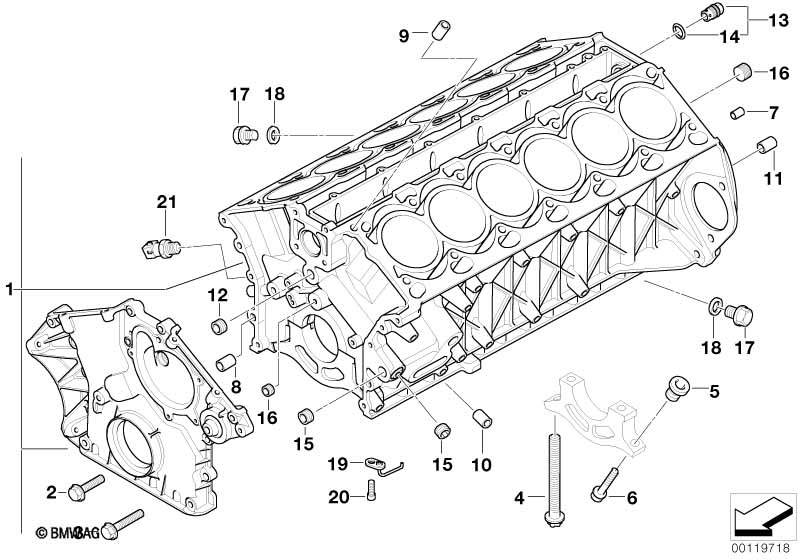

This Engine block technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block with piston | ALUSIL | 1 | 11117521320 | $10649.81 | ENDED | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Primer Loctite 171000 | 4ML | 1 | 83197515683 | $11.90 | Shop at ECS Tuning | ||||
| For vehicles with Low compression engine |
S858A=Yes |
|||||||||
| 01 | Engine block with piston | ALUSIL | 1 | 11110412190 | $8626.68 | ENDED, +core | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Primer Loctite 171000 | 4ML | 1 | 83197515683 | $11.90 | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X40-U1-8.8 | 3 | 07119904514 | $0.49 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X55-U1 | 3 | 07119905391 | $1.27 | Shop at ECS Tuning | ||||
| 04 | Collar screw | M11X99 | 14 | 11117628302 | Shop at ECS Tuning | |||||
| 05 | Spacer bush | 14 | 11111710132 | $5.27 | Shop at ECS Tuning | |||||
| 06 | Collar screw | M8X37 | 9 | 11417508149 | $0.88 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=8,3MM | 2 | 11121715657 | $1.25 | Shop at ECS Tuning | ||||
| 08 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 09 | Dowel | D=12,5MM | 4 | 11121726241 | $1.62 | Shop at ECS Tuning | ||||
| 10 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 11 | Dowel | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 12 | Screw plug | M16X1,5 | 1 | 11117545230 | $3.78 | Shop at ECS Tuning | ||||
| 13 | Control valve | 1 | 11427502982 | $14.28 | Shop at ECS Tuning | |||||
| 14 | O-ring | 18,0X2,5MM | 1 | 11421741129 | $1.81 | Shop at ECS Tuning | ||||
| 15 | Screw plug | M18X1.5-ZNNIV | 2 | 11117545231 | $3.78 | Shop at ECS Tuning | ||||
| 16 | Screw plug | M10X1-ZNNIV SI | 5 | 11117545229 | $2.12 | Shop at ECS Tuning | ||||
| 17 | Screw plug | M14X1,5-ZNNIV | 2 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 18 | Gasket ring | A14X20-AL | 2 | 07119963225 | $0.11 | Shop at ECS Tuning | ||||
| 19 | Oil Spraying Nozzle | 12 | 11427504951 | $14.97 | Shop at ECS Tuning | |||||
| 20 | ISA screw | M6X16 | 12 | 07129904963 | $0.82 | Shop at ECS Tuning | ||||
| 21 | Oil pressure switch | M12X1,5 | 1 | 12618611273 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
