Cylinder Head Attached Parts for BMW 7 Series E65 760i (2008)

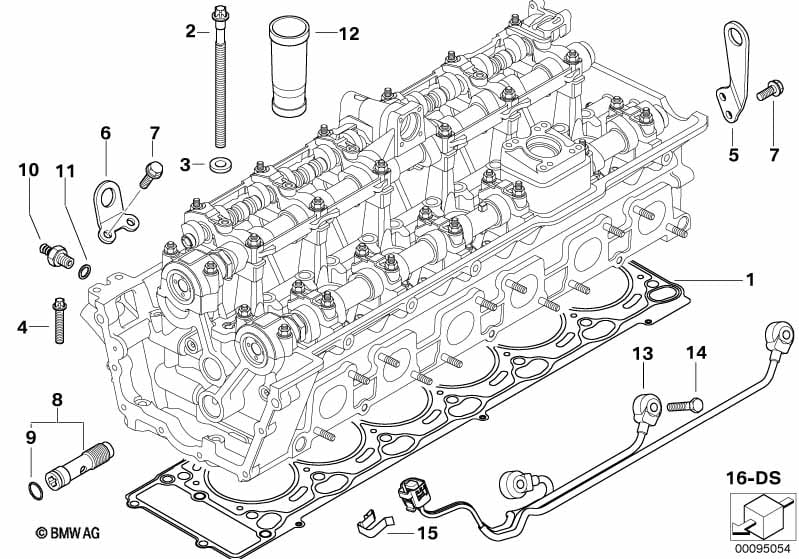

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 760i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head Gasket Asbestos-Free | 0,75MM | 2 | 11127515147 | $151.90 | Shop at ECS Tuning | ||||
| 01 | Cylinder Head Gasket Asbestos-Free | 1,05MM(+0,3) | 2 | 11127515148 | $151.90 | Shop at ECS Tuning | ||||
| 02 | Set Bolt Cylinder Head | M10X160 | 2 | 11127583114 | $53.70 | Shop at ECS Tuning | ||||
| 03 | Washer | 28 | 11127550856 | $0.65 | Shop at ECS Tuning | |||||
| 04 | Torx bolt | M8X45 | 4 | 11127511073 | $1.07 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO CYLINDER 1-6 | ||||||||||
| 05 | Shackle | 1 | 11127511609 | $4.22 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CYLINDER 7-12 | ||||||||||
| 06 | Shackle | 1 | 11127511610 | $3.14 | Shop at ECS Tuning | |||||
| 07 | ISA screw | M8X22-ZNNIV SI | 4 | 07/2005 | 07129905769 | $0.47 | Shop at ECS Tuning | |||
| 08 | non-return valve | M14X1,5 | 6 | 11367539857 | $21.87 | Shop at ECS Tuning | ||||
| 09 | O-ring | 9,5X2,5MM | 2 | 11367507729 | $2.92 | Shop at ECS Tuning | ||||
| 10 | Connection fitting, micro-encapsulated | M8X1 | 2 | 08/2013 | 11128626647 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A8X11,5-AL | 2 | 08/2013 | 07119963041 | $0.57 | Shop at ECS Tuning | |||
| 12 | Spark plug pipe | 12 | 11127570219 | $27.00 | Shop at ECS Tuning | |||||
| 13 | Ping Sensor | ZYL.1-6 | 1 | 12147519647 | $107.22 | Shop at ECS Tuning | ||||
| 13 | Ping Sensor | ZYL.7-12 | 1 | 12147519648 | $107.22 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X30-8.8-ZNS3 | 6 | 07119902901 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Fixing clamp | 2 | 12147516759 | $1.63 | Shop at ECS Tuning | |||||
| 16 | Gasket Set Cylinder Head Asbestos Free | 1 | 11120152551 | $559.96 | Shop at ECS Tuning | |||||
| Gasket set without cyl.head gasket | ||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
