Belt Drive Water Pump/Alternator for BMW 7 Series E66 760Li (2008)

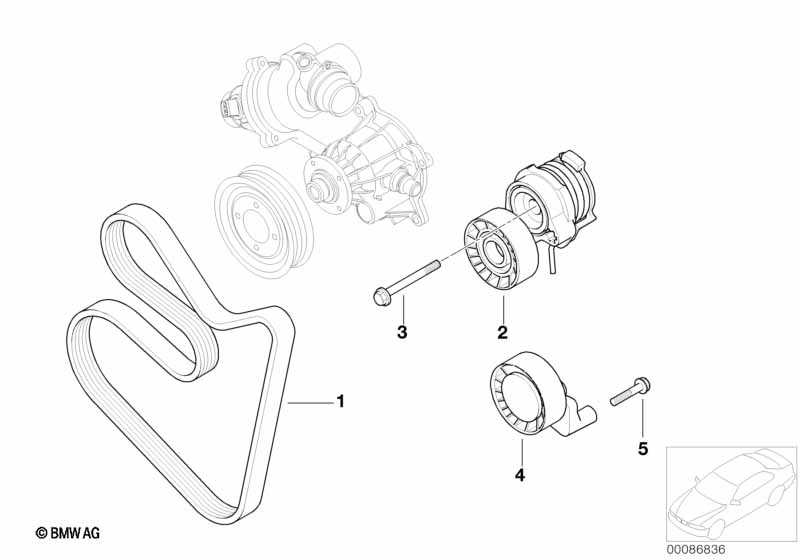

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | PK6X1548 | 1 | 11287631817 | +core | Shop at ECS Tuning | ||||
| 02 | Belt tensioner | 1 | 11287549588 | $101.95 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M10X95-ZNNIV SI | 1 | 07119905642 | $3.20 | Shop at ECS Tuning | ||||
| 04 | Deflection pulley with console | 1 | 11287574834 | $46.81 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X40-U1-8.8 | 2 | 07119904514 | $0.49 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 760Li Belt Drive Water Pump/Alternator?
- This technical diagram illustrates the Belt Drive Water Pump/Alternator within the Engine group for the 7 Series E66 760Li produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Ribbed v-belt (Part #11287631817).
- Which models use the hardware listed in this Belt Drive Water Pump/Alternator?
- The hardware and components featured in the Belt Drive Water Pump/Alternator are specific to the 7 Series E66 760Li produced during 2008. These technical specifications ensure that parts like the Ribbed v-belt (11287631817) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Belt Drive Water Pump/Alternator assembly?
- Each item in the Belt Drive Water Pump/Alternator corresponds to the numbered list below the illustration. For the 7 Series E66 760Li, you can identify the Ribbed v-belt by locating its position on the schematic, which then links to the official BMW part number 11287631817 for the Engine section.
