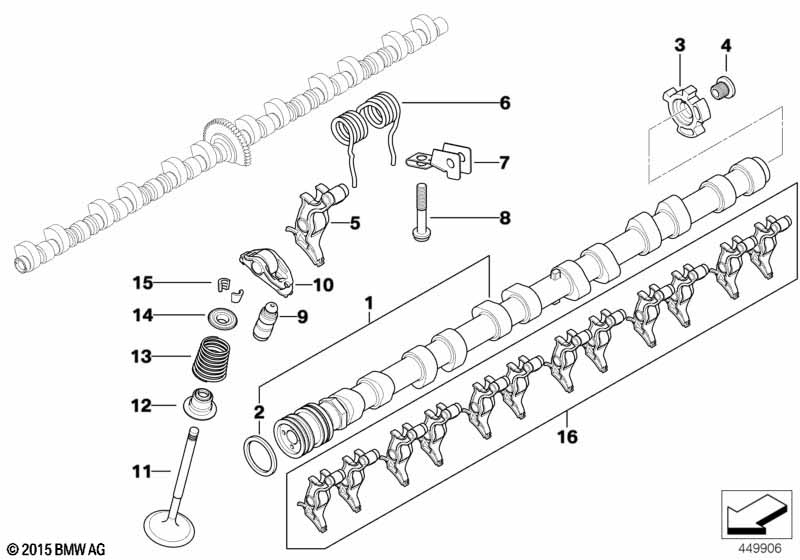

Valve timing gear, camshaft, inlet for BMW 7 Series E65 760i (2008)
This Valve timing gear, camshaft, inlet technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 760i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inlet camshaft | ZYL. 1-6 | 1 | 11317511052 | $820.26 | Shop at ECS Tuning | ||||
| 01 | Inlet camshaft | ZYL. 7-12 | 1 | 11317511055 | $793.35 | Shop at ECS Tuning | ||||
| 02 | Rectangring | 4 | 11311705512 | $5.62 | +core | Shop at ECS Tuning | ||||
| 03 | Reluctor | 2 | 11367504187 | $11.07 | Shop at ECS Tuning | |||||
| 04 | Inner hex bolt | M14X1,5X19 | 2 | 11367539927 | $2.62 | Shop at ECS Tuning | ||||
| Important! See PuMA measure 58661700 Attention Comply with repair instructions! The intermediate lever can no longer be ordered as a separate component. Order set of intermediate levers according to repair instructions. |
||||||||||
| 05 | Read comments and instruct. carefully! | 24 | 01104444444 | ENDED, NoS | Shop at ECS Tuning | |||||
| 06 | Retainer spring | 24 | 11377511236 | $10.25 | Shop at ECS Tuning | |||||
| 07 | Support plate | 12 | 11377511237 | $4.44 | Shop at ECS Tuning | |||||
| 08 | Torx bolt | M7X43 | 12 | 11127544556 | $1.07 | Shop at ECS Tuning | ||||
| 09 | Alignment element | 24 | 11337516948 | $21.42 | Shop at ECS Tuning | |||||
| 10 | Roller drag lever | "1" | 24 | 11337530979 | $33.04 | Shop at ECS Tuning | ||||
| 10 | Roller drag lever | "2A" | 24 | 11337530980 | $33.04 | Shop at ECS Tuning | ||||
| 10 | Roller drag lever | "3" | 24 | 11337530982 | $33.04 | Shop at ECS Tuning | ||||
| 11 | Intake valve | D=35,0/5,92MM | 24 | 11347503737 | $27.75 | Shop at ECS Tuning | ||||
| 12 | Repair kit valve seal ring | 1 | 11340053504 | Shop at ECS Tuning | ||||||
| 13 | Valve spring | 24 | 11347508371 | $7.88 | Shop at ECS Tuning | |||||
| 14 | Upper spring plate | 24 | 11347614134 | Shop at ECS Tuning | ||||||
| 15 | Valve collet | D=6 | 48 | 11341461405 | $1.34 | Shop at ECS Tuning | ||||
| Important! See PuMA measure 58661700 The idler arm kit consists of 8 idler arms of a class For 3-5 idler arms |
||||||||||
| 16 | Repair kit for idler lever | "B" | 2 | 11378645503 | Shop at ECS Tuning | |||||
| Important! See PuMA measure 58661700 The idler arm kit consists of 8 idler arms of a class For Class 1-3 idler arms |
||||||||||
| 16 | Repair kit for idler lever | "A" | 2 | 11378645502 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
