Pollutant reduction pipes for BMW 7 Series E65 760i (2005)

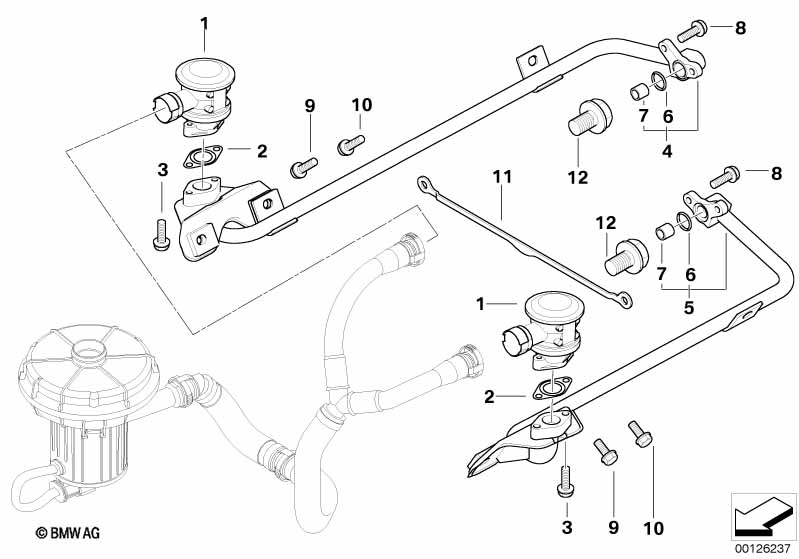

This Pollutant reduction pipes technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 760i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Valve | 2 | 11727553102 | $114.19 | Shop at ECS Tuning | |||||
| 02 | Gasket Steel | 2 | 11727514860 | $1.19 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X30-ZNNIV SI | 4 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 04 | Air intake tube | ZYL. 1-6 | 1 | 11727531546 | $188.95 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Air intake tube | ZYL. 7-12 | 1 | 11727519591 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | O-ring | 15,88X2,62MM | 2 | 11727514859 | $1.75 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=13,5MM | 2 | 11121726243 | $1.62 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X20 | 4 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 10 | ISA screw | M8X25-U1-8.8 | 4 | 07129906138 | $2.23 | Shop at ECS Tuning | ||||
| For vehicles with Equipment for leaded fuel |
S199A=Yes |
|||||||||
| 11 | Spacer plate | 2 | 11727527640 | $31.53 | ENDED | Shop at ECS Tuning | ||||
| 12 | Screw plug | M12X1,5 | 2 | 11127529513 | $3.68 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
