Crankshaft-Pistons for BMW MINI R53 Cooper S

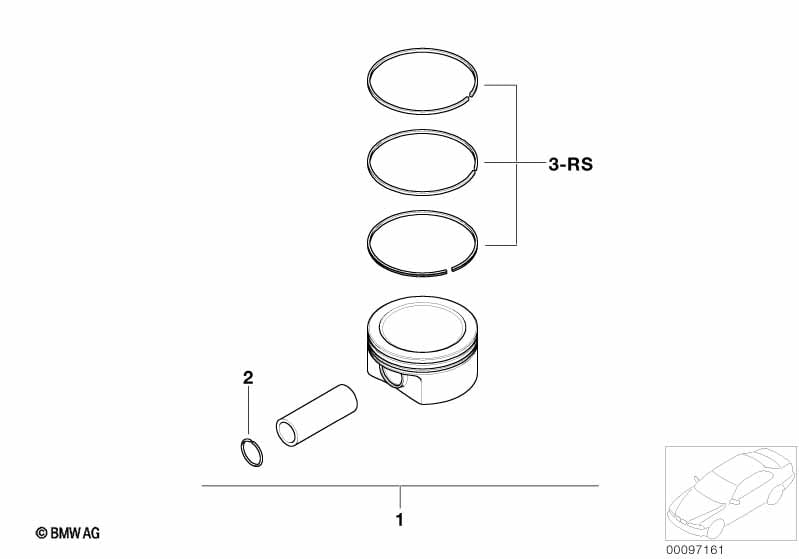

This Crankshaft-Pistons technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Piston kit | (0) | 1 | 11257520131 | $928.96 | Shop at ECS Tuning | ||||
| 01 | Piston kit | (+0,25) | 1 | 11257513075 | $928.96 | Shop at ECS Tuning | ||||
| 02 | Snap ring | 8 | 11251492121 | $3.47 | Shop at ECS Tuning | |||||
| 03 | Repair kit piston rings | (0) | 4 | 11257520133 | $52.96 | Shop at ECS Tuning | ||||
| 03 | Repair kit piston rings | (+0,25) | 4 | 11257520134 | $52.96 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R53 Cooper S Crankshaft-Pistons?
- This technical diagram illustrates the Crankshaft-Pistons within the Engine group for the MINI R53 Cooper S. It provides a detailed exploded view of the components, identifying key parts such as the Piston kit (Part #11257520131).
- Which models use the hardware listed in this Crankshaft-Pistons?
- The hardware and components featured in the Crankshaft-Pistons are specific to the MINI R53 Cooper S. These technical specifications ensure that parts like the Piston kit (11257520131) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankshaft-Pistons assembly?
- Each item in the Crankshaft-Pistons corresponds to the numbered list below the illustration. For the MINI R53 Cooper S, you can identify the Piston kit by locating its position on the schematic, which then links to the official BMW part number 11257520131 for the Engine section.
