Belt Drive Water Pump/Alternator for BMW MINI R53 Cooper S

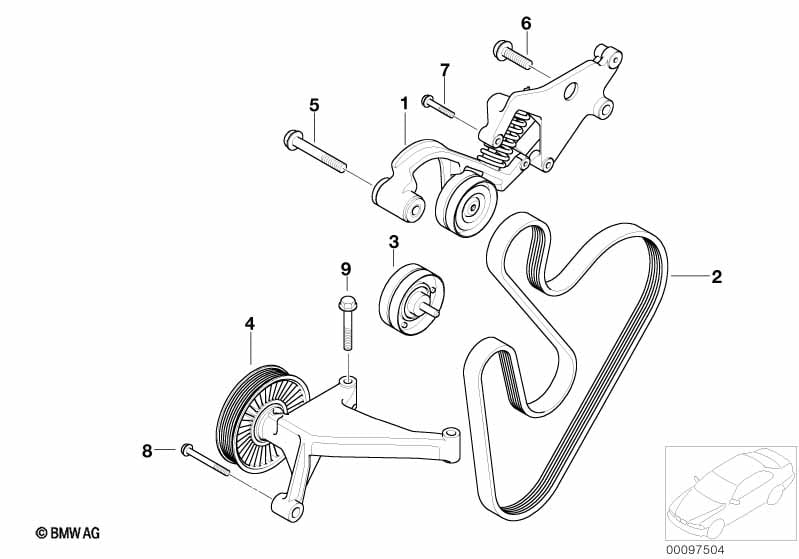

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydraulic belt tensioner | 1 | 11288620210 | Shop at ECS Tuning | ||||||
| 02 | Ribbed v-belt | 6PK X 1388 | 1 | 11287520199 | $37.60 | +core | Shop at ECS Tuning | |||
| For vehicles with John Cooper Works Kit |
S3ALA=Yes |
|||||||||
| 02 | Ribbed v-belt | 6PK X 1374 | 1 | 11287545120 | $37.60 | +core | Shop at ECS Tuning | |||
| 03 | Adjusting pulley | 1 | 11288625983 | Shop at ECS Tuning | ||||||
| For vehicles with Air conditioning and Automatic air conditioning |
S530A=No S534A=No |
|||||||||
| 04 | Deflection pulley | 1 | 11287570810 | $82.00 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M10X70 | 1 | 07119905818 | $1.78 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M10X35-U1 | 1 | 12/2002 | 07119906140 | $1.27 | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M10X50 | 1 | 12/2002 | 07119906091 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M6 X 35 | 2 | 07119904406 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Collar screw | M10X57 | 2 | 11287584167 | $5.13 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X50 | 2 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
