Lubricat.syst.-oil filter,heat exchanger for BMW MINI R53 Cooper S

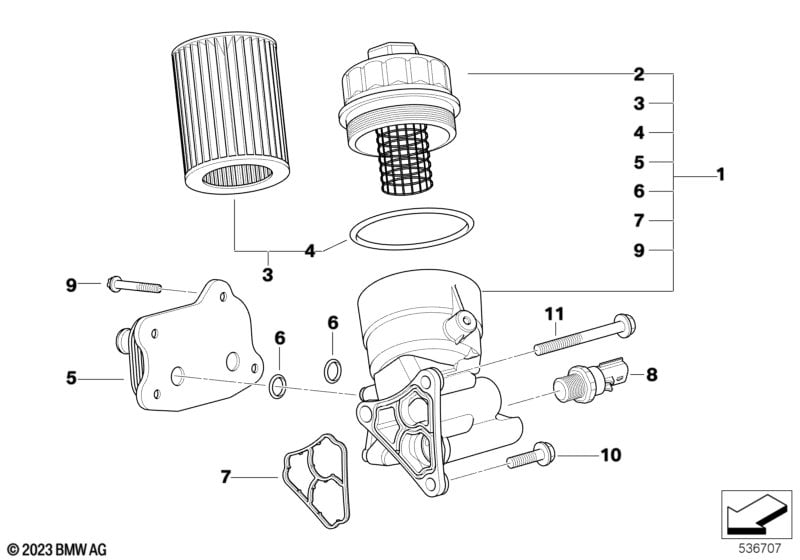

This Lubricat.syst.-oil filter,heat exchanger technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission |
S205A=No |
||||||||
| 01 | Oil filter with aluminium cover | O. ÖLDR-SCHALT. | 1 | 11427562250 | $256.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Oil pressure switch | 1 | 12617513068 | $12.08 | Shop at ECS Tuning | |||||
| 02 | Oil filter cover | 1 | 11427563763 | $42.10 | +core | Shop at ECS Tuning | ||||
| 03 | Set oil-filter element | 1 | 11427512446 | $10.85 | Shop at ECS Tuning | |||||
| 04 | O-ring | 79X3,53 | 1 | 11427562249 | $3.71 | Shop at ECS Tuning | ||||
| 05 | Heat exchanger | 1 | 11427509212 | $135.73 | Shop at ECS Tuning | |||||
| 06 | Gasket | 2 | 11427509261 | $3.67 | Shop at ECS Tuning | |||||
| 07 | Gasket | 1 | 11427509211 | $8.54 | Shop at ECS Tuning | |||||
| 08 | Oil pressure switch | 1 | 12617513068 | $12.08 | Shop at ECS Tuning | |||||
| 09 | Isa screw with washer | M6X20 | 4 | 11427788464 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X25 | 2 | 07131500892 | $0.65 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X80-U1-10.9 | 1 | 07119907357 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
