Emission control-air pump for BMW 3 Series E46 318i (2005)

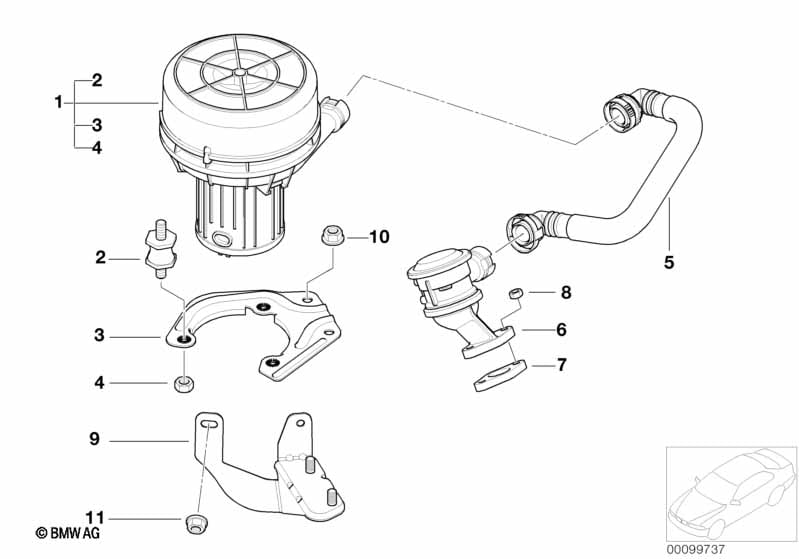

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air pump | 1 | 11727520225 | Shop at ECS Tuning | ||||||
| 02 | Rubber Mounting | 3 | 11727571866 | $7.35 | Shop at ECS Tuning | |||||
| 03 | Secondary air pump bracket | 1 | 11727506380 | Shop at ECS Tuning | ||||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Pressure hose assy | 1 | 11727510428 | $17.14 | Shop at ECS Tuning | |||||
| 06 | Valve | 1 | 11727553068 | $114.19 | Shop at ECS Tuning | |||||
| 07 | Gasket Asbestos Free | 1 | 11727510374 | $18.37 | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | 2 | 11721742644 | $0.50 | Shop at ECS Tuning | |||||
| 09 | Bracket | 1 | 11727521514 | Shop at ECS Tuning | ||||||
| 10 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning |
