Oil pan/oil level indicator for BMW 5 Series E60 525d (2006)

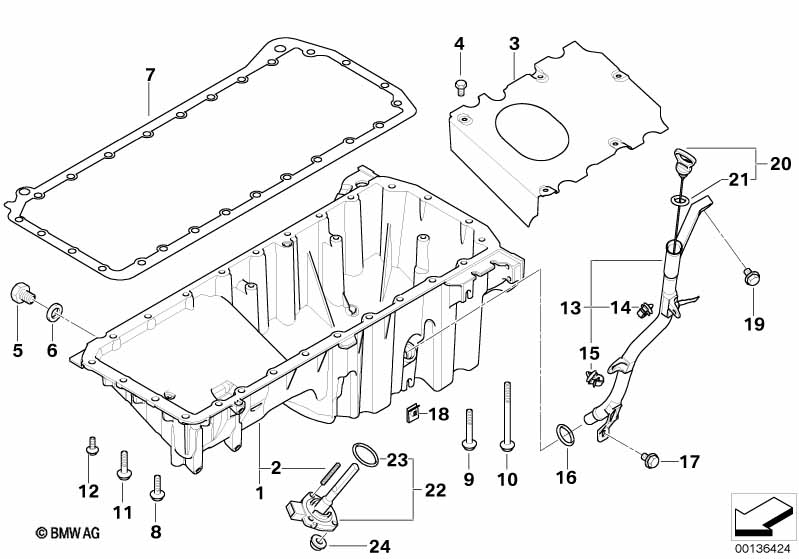

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11137806219 | +core | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Stud bolt | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Splash plate | 1 | 11137790127 | Shop at ECS Tuning | ||||||
| 04 | Collar screw | M6 X 16 | 5 | 12517805605 | $0.58 | Shop at ECS Tuning | ||||
| 05 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Gasket, oil pan | 1 | 11130149329 | $48.50 | Shop at ECS Tuning | |||||
| 08 | Torx bolt | M6X22 | 17 | 11137800619 | $0.67 | Shop at ECS Tuning | ||||
| 09 | Torx bolt | M6X60-ZNNIV SI | 2 | 11137800622 | $1.08 | Shop at ECS Tuning | ||||
| 10 | Torx bolt | M6X100 | 2 | 11137800623 | $1.65 | Shop at ECS Tuning | ||||
| 11 | ASA-Bolt | M8X30 | 3 | 11138592611 | Shop at ECS Tuning | |||||
| 12 | ASA-Bolt | M8X30 | 1 | 11138592611 | Shop at ECS Tuning | |||||
| 13 | Guide tube | 1 | 09/2003 | 11437793309 | Shop at ECS Tuning | |||||
| 14 | Tubing support | D10-11 | 1 | 13532245954 | Shop at ECS Tuning | |||||
| 15 | Clip retainer | 1 | 09/2003 | 61138368029 | $0.43 | Shop at ECS Tuning | ||||
| 16 | O-ring | 14X3 | 1 | 11437794698 | $1.19 | Shop at ECS Tuning | ||||
| 17 | Hex bolt with washer | M6X14-U1-8.8 | 1 | 09/2003 | 07119905525 | $0.47 | Shop at ECS Tuning | |||
| 18 | Clip nut | M6-ZNS3 | 1 | 09/2003 | 11427789289 | $1.07 | Shop at ECS Tuning | |||
| 19 | Hex bolt with washer | M6X14-U1-8.8 | 1 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 20 | Dipstick | 1 | 11437788969 | ENDED | Shop at ECS Tuning | |||||
| 21 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| 22 | Oil levelling sensor | 1 | 12617508003 | $163.50 | Shop at ECS Tuning | |||||
| 23 | Gasket ring | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 24 | Hex nut | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525d Oil pan/oil level indicator?
- This technical diagram illustrates the Oil pan/oil level indicator within the Engine group for the 5 Series E60 525d produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Oil Pan (Part #11137806219).
- Which models use the hardware listed in this Oil pan/oil level indicator?
- The hardware and components featured in the Oil pan/oil level indicator are specific to the 5 Series E60 525d produced during 2006. These technical specifications ensure that parts like the Oil Pan (11137806219) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan/oil level indicator assembly?
- Each item in the Oil pan/oil level indicator corresponds to the numbered list below the illustration. For the 5 Series E60 525d, you can identify the Oil Pan by locating its position on the schematic, which then links to the official BMW part number 11137806219 for the Engine section.
