Belt Drive Water Pump/Alternator for BMW 5 Series E60 525d (2007)

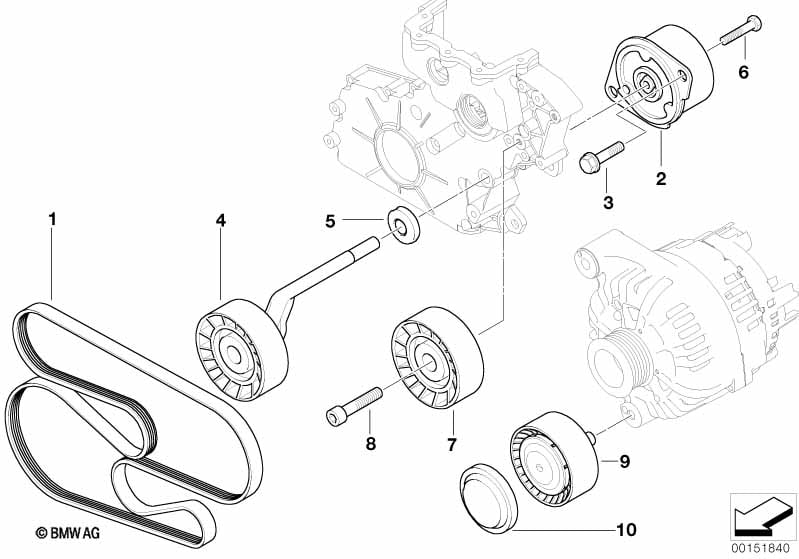

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Dynamic Drive |
S229A=Yes |
|||||||||
| 01 | Ribbed v-belt | 6PK X 2160 | 1 | 11288477785 | Shop at ECS Tuning | |||||
| For vehicles with Dynamic Drive |
S229A=No |
|||||||||
| 01 | Ribbed v-belt | 6PK X 2080 | 1 | 11288477779 | Shop at ECS Tuning | |||||
| 02 | Belt tensioner | 1 | 11287786880 | $91.76 | Shop at ECS Tuning | |||||
| 03 | Torx screw with collar | M7X38 | 2 | 11517789351 | Shop at ECS Tuning | |||||
| 04 | Belt tensioner | 1 | 11287807021 | $91.76 | Shop at ECS Tuning | |||||
| 05 | sealing | 1 | 11282247187 | $1.18 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Deflection pulley | D=70MM | 1 | 11287799464 | $46.81 | Shop at ECS Tuning | ||||
| 08 | Fillister-head screw | M8X35-10.9 | 1 | 07119905409 | $6.56 | Shop at ECS Tuning | ||||
| For vehicles with Dynamic Drive |
S229A=No |
|||||||||
| 09 | Deflection pulley | D=85MM | 1 | 11/2006 | 11287802146 | $46.81 | Shop at ECS Tuning | |||
| 10 | Protection cap | 1 | 11/2006 | 11287802206 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Deflection pulley | D=85MM | X | 11/2006 | 11287802146 | $46.81 | Shop at ECS Tuning | |||
