Cooling System Water Hoses for BMW 5 Series E60 530i (2023)

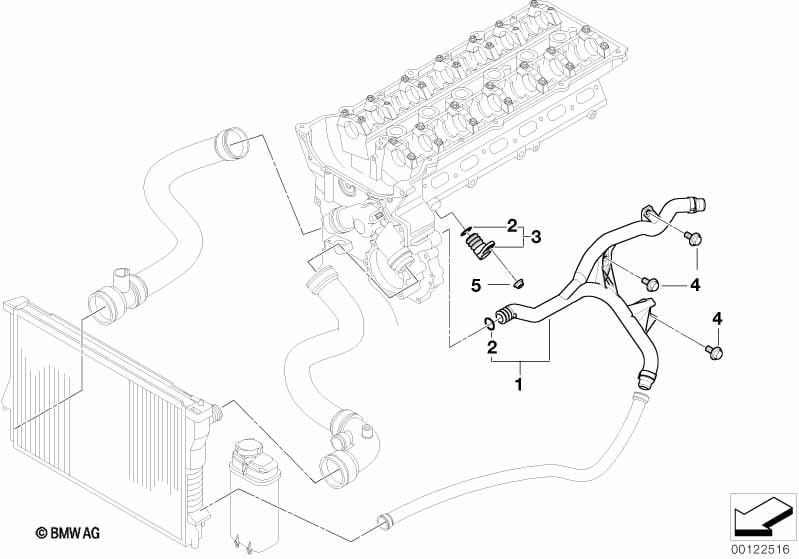

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Coolant and heating hoses see main section 17 and 64 |
|||||||||
| 01 | Water pipe | 1 | 11537519710 | $71.68 | Shop at ECS Tuning | |||||
| 02 | O-ring | 20X3 | 4 | 11531435808 | $1.81 | Shop at ECS Tuning | ||||
| 03 | Blind plug | 1 | 11537519733 | $7.18 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X20-U1-8.8 | 3 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530i Cooling System Water Hoses?
- This technical diagram illustrates the Cooling System Water Hoses within the Engine group for the 5 Series E60 530i produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Water pipe (Part #11537519710).
- Which models use the hardware listed in this Cooling System Water Hoses?
- The hardware and components featured in the Cooling System Water Hoses are specific to the 5 Series E60 530i produced during 2023. These technical specifications ensure that parts like the Water pipe (11537519710) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling System Water Hoses assembly?
- Each item in the Cooling System Water Hoses corresponds to the numbered list below the illustration. For the 5 Series E60 530i, you can identify the Water pipe by locating its position on the schematic, which then links to the official BMW part number 11537519710 for the Engine section.
