Suction pipe for air duct system for BMW 3 Series E46 M3 CSL

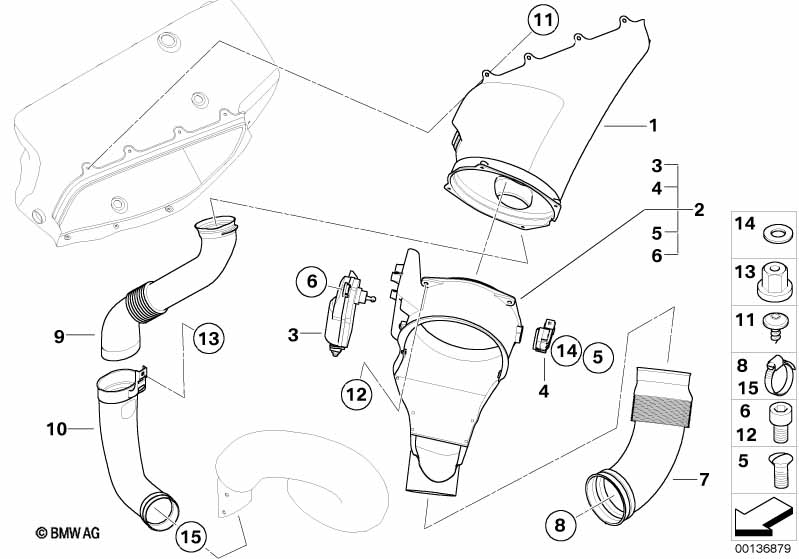

This Suction pipe for air duct system technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3 CSL. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Important! See information in the TI-column. |
||||||||||
| 01 | Unfiltered air housing | 1 | 11617833497 | $2385.63 | +core | Shop at ECS Tuning | ||||
| 02 | Control unit | 1 | 11617833498 | $464.55 | +core | Shop at ECS Tuning | ||||
| 03 | Actuator | 1 | 11617511383 | $228.50 | Shop at ECS Tuning | |||||
| 04 | Throttle valve switch | 4 KOHM | 1 | 13637840383 | $96.25 | Shop at ECS Tuning | ||||
| 05 | Countersunk screw | 2 | 11617835495 | Shop at ECS Tuning | ||||||
| 06 | Fillister head with washer | M6X16-Z1 SW | 3 | 07119901913 | $0.33 | Shop at ECS Tuning | ||||
| 07 | Intake tube | 1 | 11617833648 | $20.79 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 09 | Air duct | 1 | 11617833646 | $32.80 | Shop at ECS Tuning | |||||
| 10 | Suction tube | 1 | 11617833645 | $60.35 | Shop at ECS Tuning | |||||
| 11 | Countersunk screw | M5X12-U2-A2-70 | 4 | 07119905016 | $2.56 | Shop at ECS Tuning | ||||
| 12 | Fillister head with washer | M6X20-Z1 SW | 4 | 07119901780 | $0.33 | Shop at ECS Tuning | ||||
| 13 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 14 | Washer | 9X4,3X0,8-200HV | 2 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | L65-72 | 1 | 07129952127 | $1.89 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 CSL Suction pipe for air duct system?
- This technical diagram illustrates the Suction pipe for air duct system within the Engine group for the 3 Series E46 M3 CSL. It provides a detailed exploded view of the components, identifying key parts such as the Unfiltered air housing (Part #11617833497).
- Which models use the hardware listed in this Suction pipe for air duct system?
- The hardware and components featured in the Suction pipe for air duct system are specific to the 3 Series E46 M3 CSL. These technical specifications ensure that parts like the Unfiltered air housing (11617833497) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Suction pipe for air duct system assembly?
- Each item in the Suction pipe for air duct system corresponds to the numbered list below the illustration. For the 3 Series E46 M3 CSL, you can identify the Unfiltered air housing by locating its position on the schematic, which then links to the official BMW part number 11617833497 for the Engine section.
