Intake manifold-supercharg.air duct for BMW 3 Series E46 320td (2004)

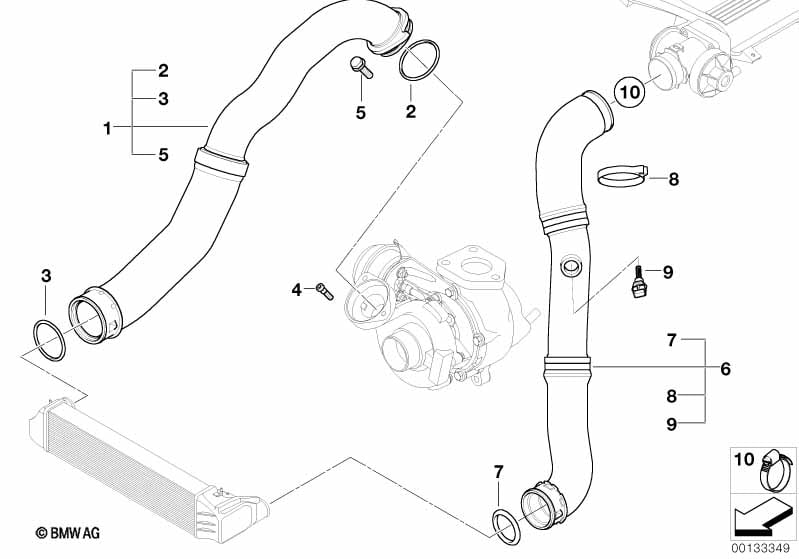

This Intake manifold-supercharg.air duct technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charge air line | 1 | 03/2003 | 11617786865 | Shop at ECS Tuning | |||||
| 02 | Preformed seal | 1 | 03/2003 | 11617801206 | Shop at ECS Tuning | |||||
| 03 | Preformed seal | 1 | 03/2003 | 11617788415 | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | M6X16 | 1 | 03/2003 | 11617788358 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X18-U1 | 1 | 03/2003 | 07119905399 | $0.36 | Shop at ECS Tuning | |||
| 06 | Charge air line | 1 | 03/2003 | 11617799397 | +core | Shop at ECS Tuning | ||||
| 07 | Preformed seal | 1 | 03/2003 | 11617791235 | Shop at ECS Tuning | |||||
| 08 | Cable holder | 1 | 03/2003 | 11617791585 | Shop at ECS Tuning | |||||
| 09 | Intake air temperature sensor | 1 | 03/2003 | 11613449116 | $32.95 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | D= 59-68MM | 4 | 03/2003 | 11617786527 | $5.07 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
