Emission control-air pump for BMW 5 Series E60 530i (2005)

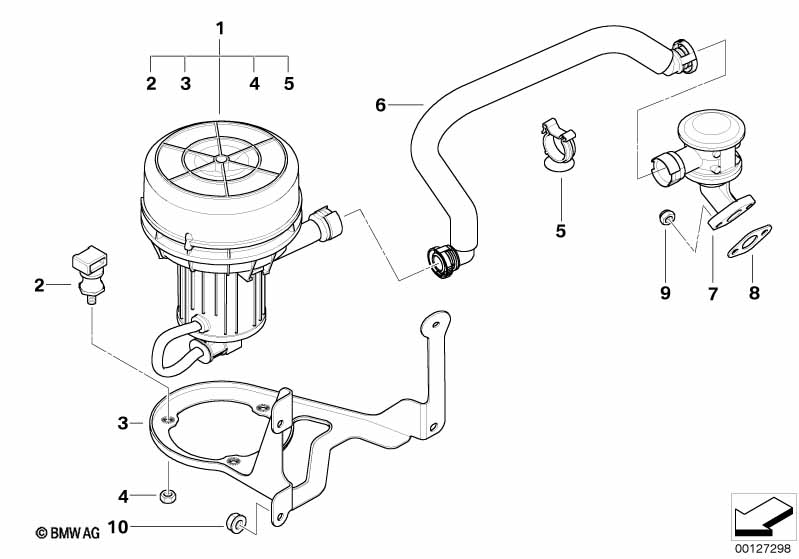

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air pump | 1 | 11727527598 | Shop at ECS Tuning | ||||||
| 03 | Secondary air pump bracket | 1 | 11727527599 | Shop at ECS Tuning | ||||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 1 | 07147525090 | $1.13 | Shop at ECS Tuning | |||||
| 06 | Pressure hose assy | 1 | 11727556956 | $45.63 | +core | Shop at ECS Tuning | ||||

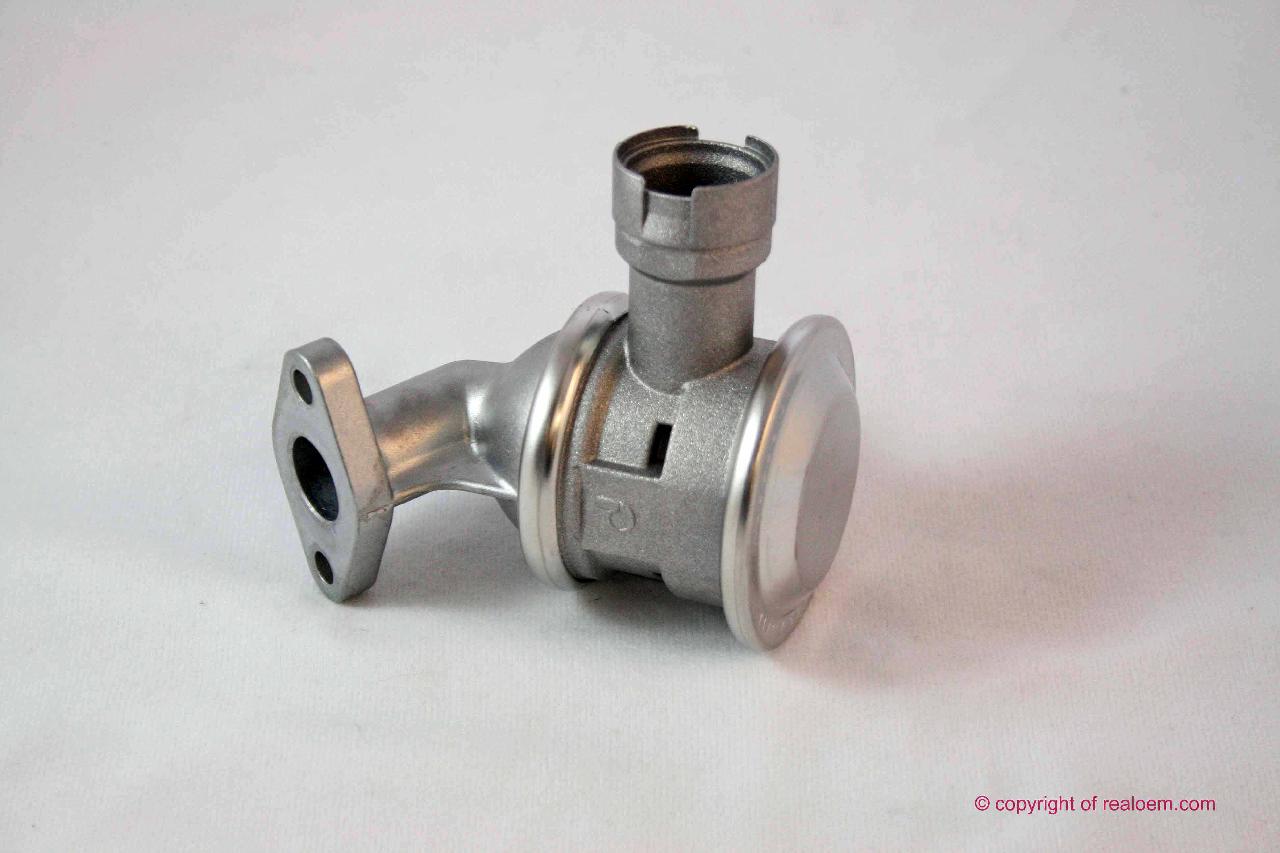

| 07 | Valve | 1 | 11727553067 | $114.19 | Shop at ECS Tuning | |||||
| 08 | Gasket Steel | 1 | 11727514860 | $1.19 | Shop at ECS Tuning | |||||
| 09 | Self-locking hex nut | 2 | 11721742644 | $0.50 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | AM6-8-ZNNIV SI | 3 | 07129904553 | $0.64 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
