Belt Drive Climate Compressor for BMW 3 Series E36 325tds (1999)

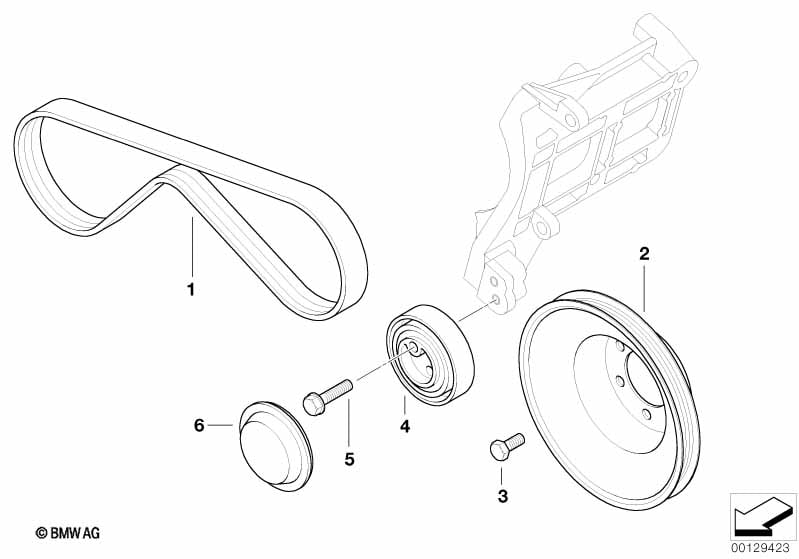

This Belt Drive Climate Compressor technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | 4PK X 781 | 1 | 10/1994 | 64552246732 | $18.70 | Shop at ECS Tuning | |||
| 02 | Pulley | D=121MM | 1 | 64552244376 | $32.60 | Shop at ECS Tuning | ||||
| 03 | Collar screw | M8X31 | 6 | 11111736005 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Adjusting pulley | 1 | 11282245087 | $80.75 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X35 | 1 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO FAG | ||||||||||
| 06 | Protection cap | 1 | 64552244171 | $2.11 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO INA | ||||||||||
| 06 | Protection cap | 1 | 64551727621 | $10.42 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325tds Belt Drive Climate Compressor?
- This technical diagram illustrates the Belt Drive Climate Compressor within the Engine group for the 3 Series E36 325tds produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Ribbed v-belt (Part #64552246732).
- Which models use the hardware listed in this Belt Drive Climate Compressor?
- The hardware and components featured in the Belt Drive Climate Compressor are specific to the 3 Series E36 325tds produced during 1999. These technical specifications ensure that parts like the Ribbed v-belt (64552246732) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Belt Drive Climate Compressor assembly?
- Each item in the Belt Drive Climate Compressor corresponds to the numbered list below the illustration. For the 3 Series E36 325tds, you can identify the Ribbed v-belt by locating its position on the schematic, which then links to the official BMW part number 64552246732 for the Engine section.
