Emission control for BMW 5 Series E61 530d (2005)

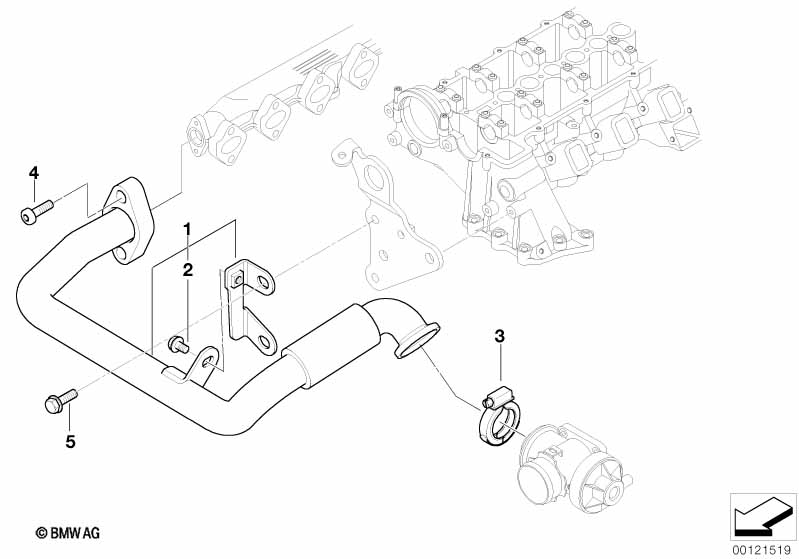

This Emission control technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with EU3 exhaust emissions standard and Automatic transmission |
S169A=Yes S205A=No |
|||||||||
| 01 | Pipe | 1 | 11712249422 | $121.90 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | 1 | 51341950474 | $0.59 | Shop at ECS Tuning | |||||
| 03 | Clamp | 1 | 11717786146 | $8.11 | Shop at ECS Tuning | |||||
| 04 | Torx bolt | M8X28 | 2 | 11712249909 | $5.12 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X12-Z1-ZNS | 2 | 07119900271 | $0.30 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 530d Emission control?
- This technical diagram illustrates the Emission control within the Engine group for the 5 Series E61 530d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Pipe (Part #11712249422).
- Which models use the hardware listed in this Emission control?
- The hardware and components featured in the Emission control are specific to the 5 Series E61 530d produced during 2005. These technical specifications ensure that parts like the Pipe (11712249422) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emission control assembly?
- Each item in the Emission control corresponds to the numbered list below the illustration. For the 5 Series E61 530d, you can identify the Pipe by locating its position on the schematic, which then links to the official BMW part number 11712249422 for the Engine section.
