Engine Suspension / Damper for BMW 5 Series E28 524td (1987)

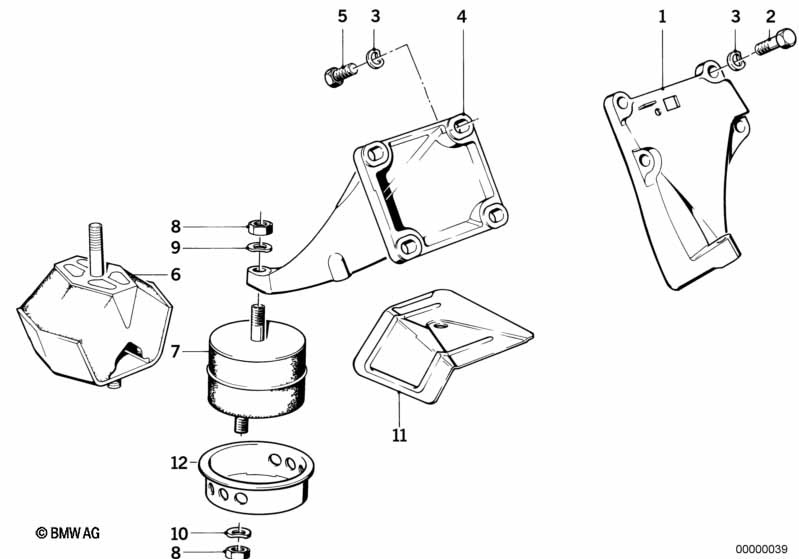

This Engine Suspension / Damper technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket left | 1 | 11811175603 | $37.68 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X30 | 3 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X35 | 1 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Washer | 8,4 | 1 | 33311108204 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Supporting bracket right | 1 | 11811127362 | $49.02 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X25 | 4 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Rubber mounting right | 1 | 11811127152 | $30.13 | Shop at ECS Tuning | |||||
| 07 | Rubber mounting left | 1 | 11811127153 | $30.97 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex nut | M10-8-ZNS | 4 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 10 | Washer | A10,5X22 | 2 | 31111114348 | $0.67 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
