Cylinder Head Attached Parts for BMW 5 Series E28 525e (1987)

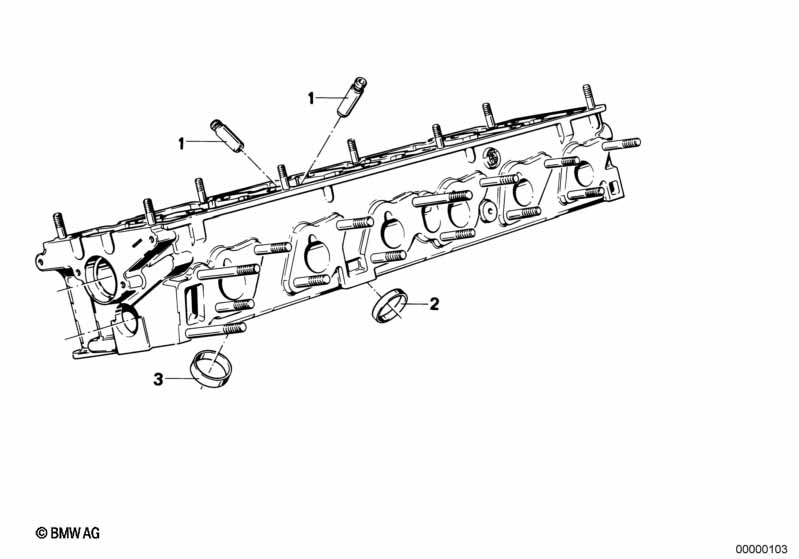

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Valve Guide | 13,1MM(+0,1) | 6 | 11121267676 | ENDED, SI 110288843 | Shop at ECS Tuning | ||||
| see service information SIT 843 11 02 88 (valve stem oversize) |
||||||||||
| 01 | Valve Guide | 13,2MM(+0,2) | 6 | 11121267677 | ENDED, SI 110288843 | Shop at ECS Tuning | ||||
| see service information SIT 843 11 02 88 (valve stem oversize) |
||||||||||
| 01 | Valve Guide | 13,3MM(+0,3) | 6 | 11121267678 | ENDED, SI 110288843 | Shop at ECS Tuning | ||||
| see service information SIT 843 11 02 88 (valve stem oversize) |
||||||||||
| 02 | Valve Seat Ring Exhaust | 6 | 12/1986 | 11121719761 | ENDED | Shop at ECS Tuning | ||||
| 03 | Valve Seat Ring Intake | 42,35MM(+0,2) | 6 | 11121267578 | $16.11 | Shop at ECS Tuning | ||||
| 03 | Valve Seat Ring Intake | 42,55MM(+0,4) | 6 | 11121267579 | $7.48 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 525e Cylinder Head Attached Parts?
- This technical diagram illustrates the Cylinder Head Attached Parts within the Engine group for the 5 Series E28 525e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Valve Guide (Part #11121267676).
- Which models use the hardware listed in this Cylinder Head Attached Parts?
- The hardware and components featured in the Cylinder Head Attached Parts are specific to the 5 Series E28 525e produced during 1987. These technical specifications ensure that parts like the Valve Guide (11121267676) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head Attached Parts assembly?
- Each item in the Cylinder Head Attached Parts corresponds to the numbered list below the illustration. For the 5 Series E28 525e, you can identify the Valve Guide by locating its position on the schematic, which then links to the official BMW part number 11121267676 for the Engine section.
