Timing and valve train-camshaft for BMW 1 Series E87 120d (2007)

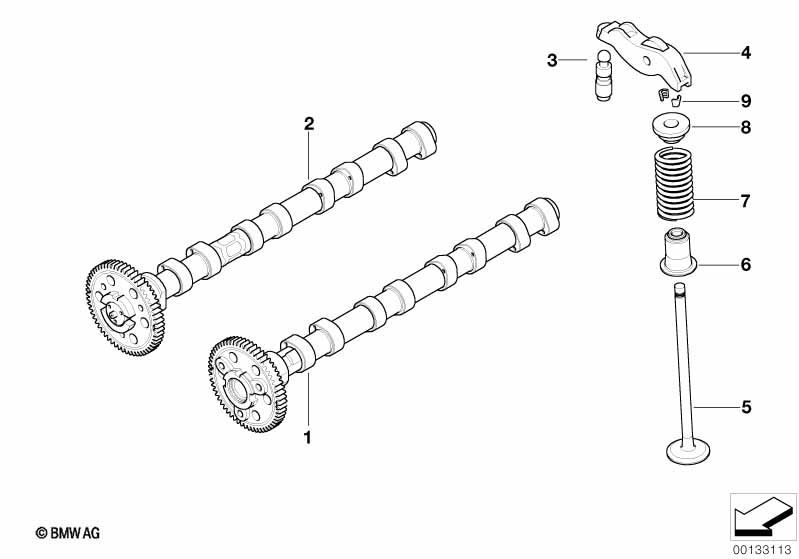

This Timing and valve train-camshaft technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.

Timing and valve train-camshaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Inlet camshaft 1 11317790595 Shop at ECS Tuning
02 Camshaft exhaust 1 11317790596 Shop at ECS Tuning
03 Alignment element 16 11332249817 $21.42 Shop at ECS Tuning
04 Rocker arm 16 11332248878 $33.04 Shop at ECS Tuning
05 Intake/exhaust valve 25,9/5,92MM 16 11342247077 $24.08 Shop at ECS Tuning
06 Repair kit valve seal ring 1 11349070982 Shop at ECS Tuning
07 Valve spring 16 11342247172 $7.88 Shop at ECS Tuning
08 Upper spring plate 16 11342246523 $3.77 Shop at ECS Tuning
09 Valve collet D=6 32 11341461405 $1.34 Shop at ECS Tuning
