Belt Drive Water Pump/Alternator for BMW 1 Series E87 118d (2007)

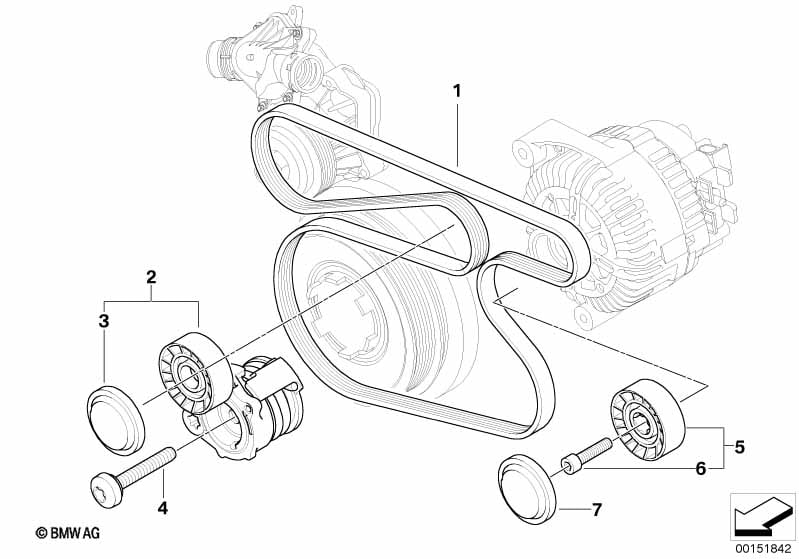

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning and Automatic air conditioning |
S530A=No S534A=No |
|||||||||
| 01 | Ribbed v-belt | 6PK X 1683 | 1 | 11287795601 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning or Automatic air conditioning |
S530A=Yes S534A=Yes |
|||||||||
| 01 | Ribbed v-belt | 6PK X 1836 | 1 | 11288477780 | Shop at ECS Tuning | |||||
| 02 | Mechanical belt tensioner | 1 | 11287790447 | Shop at ECS Tuning | ||||||
| 03 | Protection cap | 1 | 11281435114 | $2.37 | Shop at ECS Tuning | |||||
| 04 | Torx bolt | M10X50-ZNS3 | 1 | 07129904984 | $2.05 | Shop at ECS Tuning | ||||
| 05 | Deflection pulley | D=70MM | 1 | 11287790448 | $46.81 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M8X35-10.9 | 1 | 07119905409 | $6.56 | Shop at ECS Tuning | ||||
| 07 | Protection cap | 1 | 11287795159 | $2.37 | Shop at ECS Tuning | |||||
