Engine acoustics for BMW 3 Series E90 320d (2005)
This Engine acoustics technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, acoustic | 1 | 11147807248 | Shop at ECS Tuning | ||||||
| 02 | Rubber grommet | 4 | 11142247316 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Bush | 4 | 11147807626 | $0.56 | Shop at ECS Tuning | |||||
| 04 | Rubber Mounting | 2 | 17111712911 | $1.18 | Shop at ECS Tuning | |||||
| 05 | Holder f cover, acoustics | 1 | 11147807539 | Shop at ECS Tuning | ||||||
| 06 | C-clip nut | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Screw | 1 | 11717788188 | $0.57 | Shop at ECS Tuning | |||||
| 08 | Acoustic cover rear | 1 | 11147807249 | Shop at ECS Tuning | ||||||
| 09 | Fillister head with washer | M6X20-ZNNID SW | 4 | 07119906086 | $0.47 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320d Engine acoustics?

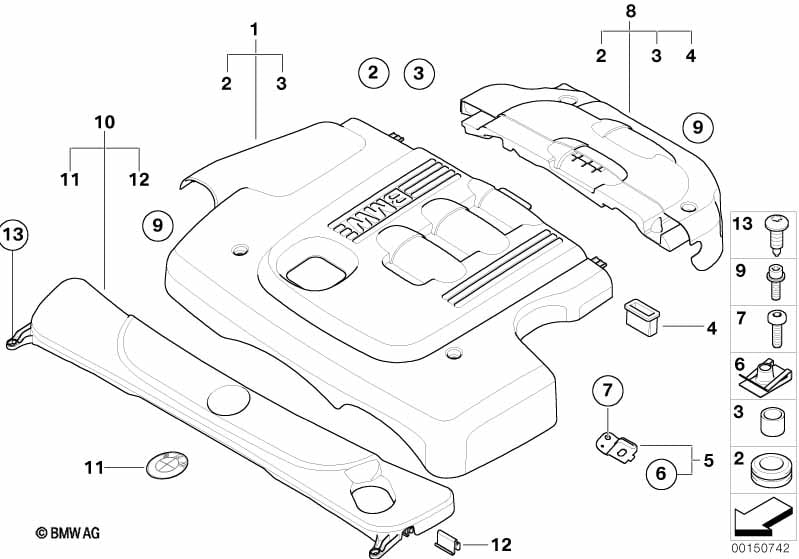

- This technical diagram illustrates the Engine acoustics within the Engine group for the 3 Series E90 320d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Cover, acoustic (Part #11147807248).
