Cooling System Water Hoses for BMW 1 Series E87 120d (2007)

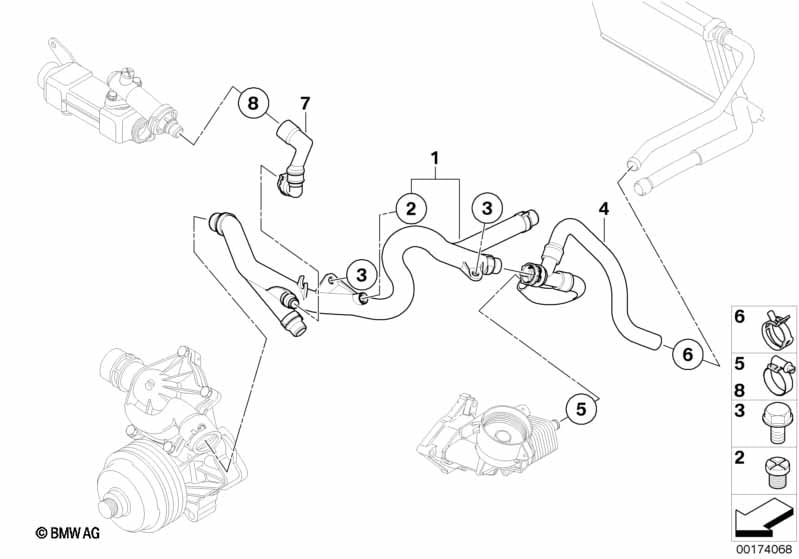

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Coolant and heating hoses see main section 17 and 64 |
|||||||||
| 01 | Pipe, heater return-hose connection | 1 | 11537802632 | $59.75 | Shop at ECS Tuning | |||||
| 02 | Vent screw | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 03 | Collar screw | M6X18-ZNS3 | 2 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Hose, heat exchanger-return pipe | 1 | 11537805358 | +core | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Spring ring shell | D=25MM | 1 | 64213405930 | Shop at ECS Tuning | |||||
| 07 | Hose for EGR cooler | 1 | 11537792622 | $11.33 | +core | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
