Short engine for BMW 5 Series E60 M5 (2006)

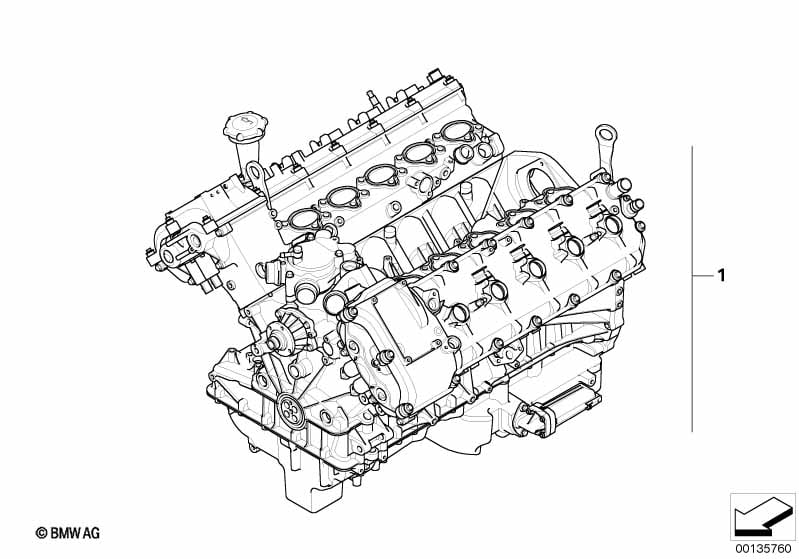

This Short engine technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP engine | S85B50A. | 1 | 07/2005 | 11000443598 | $39357.33 | +core | Shop at ECS Tuning | ||
| 01 | RP REMAN engine | S85B50A. | 1 | 07/2005 | 11000443599 | $26994.84 | ENDED, +core | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 M5 Short engine?
- This technical diagram illustrates the Short engine within the Engine group for the 5 Series E60 M5 produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the RP engine (Part #11000443598).
- Which models use the hardware listed in this Short engine?
- The hardware and components featured in the Short engine are specific to the 5 Series E60 M5 produced during 2006. These technical specifications ensure that parts like the RP engine (11000443598) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Short engine assembly?
- Each item in the Short engine corresponds to the numbered list below the illustration. For the 5 Series E60 M5, you can identify the RP engine by locating its position on the schematic, which then links to the official BMW part number 11000443598 for the Engine section.
