Cylinder head cover for BMW 5 Series E60 M5 (2006)

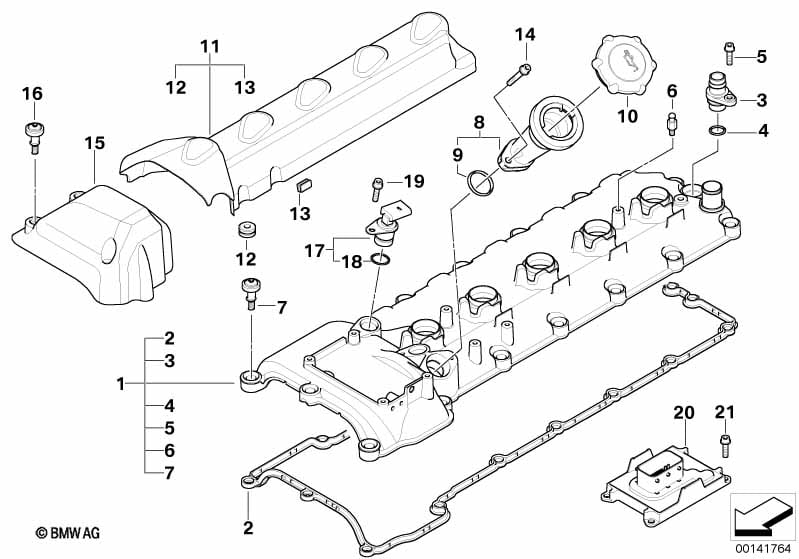

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | ZYL. 1-5 | 1 | 11127891022 | $540.74 | +core | Shop at ECS Tuning | |||
| 01 | Cylinder head cover | ZYL. 6-10 | 1 | 11127891023 | $540.74 | +core | Shop at ECS Tuning | |||
| 02 | Profile-gasket | ZYL.1-5 | 1 | 11127834110 | $39.42 | Shop at ECS Tuning | ||||
| 02 | Profile-gasket | ZYL.6-10 | 1 | 11127834111 | $39.42 | Shop at ECS Tuning | ||||
| 03 | non-return valve | 2 | 11617836553 | $17.70 | Shop at ECS Tuning | |||||
| 04 | O-ring | 20X2,5 | 2 | 11617836178 | $4.12 | Shop at ECS Tuning | ||||
| 05 | Isa screw with washer | M6X18-U1-8.8 | 2 | 07129904707 | $0.96 | Shop at ECS Tuning | ||||
| 06 | Adapter screw | 4 | 11617519556 | $2.58 | Shop at ECS Tuning | |||||
| 07 | Collar screw | M6X37,5 | 30 | 11127841217 | $4.00 | Shop at ECS Tuning | ||||
| 08 | Oil filler neck | 1 | 11127834112 | $30.43 | Shop at ECS Tuning | |||||
| 09 | O-ring | 26X2,5 | 1 | 11127836488 | $6.08 | Shop at ECS Tuning | ||||
| 10 | Cap for oil filler | 1 | 03/2010 | 11127832157 | $16.16 | Shop at ECS Tuning | ||||
| 11 | Ignition coil covering | ZYL. 1-5 | 1 | 11127835172 | $43.31 | Shop at ECS Tuning | ||||
| 11 | Ignition coil covering | ZYL. 6-10 | 1 | 11127835174 | $43.31 | Shop at ECS Tuning | ||||
| 12 | Rubber grommet | 4 | 11127501588 | $1.07 | Shop at ECS Tuning | |||||
| 13 | Distance rubber | 12 | 11127835720 | $1.68 | Shop at ECS Tuning | |||||
| 14 | Internal Torx screw with washer | M6X25-U1-8.8 | 2 | 07129905558 | $0.44 | Shop at ECS Tuning | ||||
| 15 | Cover | ZYL. 1-5 | 1 | 11127835517 | $16.37 | Shop at ECS Tuning | ||||
| 15 | Cover | ZYL. 6-10 | 1 | 11127835518 | $16.37 | Shop at ECS Tuning | ||||
| 16 | Collar screw | M6X37,5 | 4 | 11127841217 | $4.00 | Shop at ECS Tuning | ||||
| 17 | Camshaft position sensor | 4 | 13627834490 | $116.05 | Shop at ECS Tuning | |||||
| 18 | O-ring | 4 | 13627836245 | $1.88 | Shop at ECS Tuning | |||||
| 19 | Fillister-head screw | M6X16ZNNIV SI | 4 | 13627545338 | $0.47 | Shop at ECS Tuning | ||||
| 20 | Control unit for ionic current | 2 | 13627834713 | $292.57 | Shop at ECS Tuning | |||||
| 21 | Fillister-head screw | M6X18-10.9-ZNS3 | 8 | 07119906651 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 M5 Cylinder head cover?
- This technical diagram illustrates the Cylinder head cover within the Engine group for the 5 Series E60 M5 produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder head cover (Part #11127891022).
- Which models use the hardware listed in this Cylinder head cover?
- The hardware and components featured in the Cylinder head cover are specific to the 5 Series E60 M5 produced during 2006. These technical specifications ensure that parts like the Cylinder head cover (11127891022) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover assembly?
- Each item in the Cylinder head cover corresponds to the numbered list below the illustration. For the 5 Series E60 M5, you can identify the Cylinder head cover by locating its position on the schematic, which then links to the official BMW part number 11127891022 for the Engine section.
