Belt Drive-Vibration Damper for BMW 5 Series E60 M5 (2006)

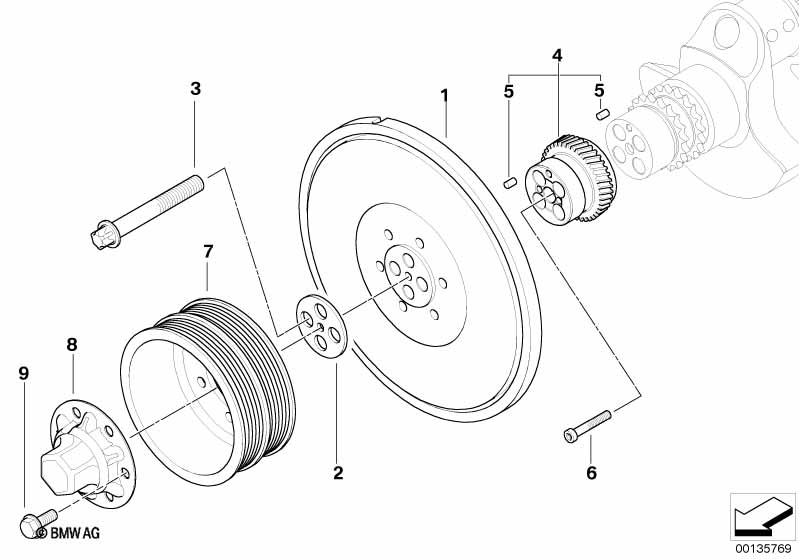

This Belt Drive-Vibration Damper technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vibration damper | 1 | 11237834097 | $728.72 | Shop at ECS Tuning | |||||
| 02 | Washer | 1 | 11231402609 | $4.82 | Shop at ECS Tuning | |||||
| 03 | Torx bolt | M12X85 | 4 | 11237834098 | $3.57 | Shop at ECS Tuning | ||||
| 04 | Gear wheel | 1 | 12/2005 | 11217838017 | $182.22 | Shop at ECS Tuning | ||||
| 05 | Pin | 2 | 11231263911 | $0.92 | Shop at ECS Tuning | |||||
| 06 | Screw | M6X35 | 1 | 09/2006 | 07129905944 | $1.27 | Shop at ECS Tuning | |||
| 07 | Pulley | 1 | 11237838230 | $90.93 | Shop at ECS Tuning | |||||
| 08 | Cover | 1 | 11237832456 | $9.87 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M8X20-U1-8.8 | 6 | 07119904992 | $0.55 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 M5 Belt Drive-Vibration Damper?
- This technical diagram illustrates the Belt Drive-Vibration Damper within the Engine group for the 5 Series E60 M5 produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Vibration damper (Part #11237834097).
- Which models use the hardware listed in this Belt Drive-Vibration Damper?
- The hardware and components featured in the Belt Drive-Vibration Damper are specific to the 5 Series E60 M5 produced during 2006. These technical specifications ensure that parts like the Vibration damper (11237834097) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Belt Drive-Vibration Damper assembly?
- Each item in the Belt Drive-Vibration Damper corresponds to the numbered list below the illustration. For the 5 Series E60 M5, you can identify the Vibration damper by locating its position on the schematic, which then links to the official BMW part number 11237834097 for the Engine section.
