Crankshaft-Pistons for BMW 5 Series E60 M5 (2006)

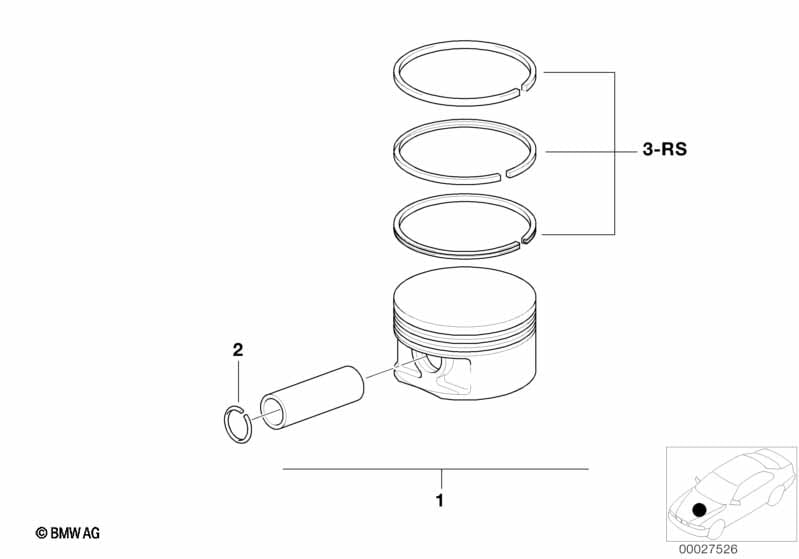

This Crankshaft-Pistons technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Only applies to cylinder 6-10 | ||||||||||
| 01 | Mahle piston | 91,990MM(0) | 5 | 11257840922 | $356.04 | Shop at ECS Tuning | ||||
| 01 | Mahle piston | 92,190MM(+0,20) | 5 | 11257840924 | $356.04 | Shop at ECS Tuning | ||||
| Only applies to cylinder 1-5 | ||||||||||
| 01 | Mahle piston | 91,990MM(0) | 5 | 11257840918 | $356.04 | Shop at ECS Tuning | ||||
| 01 | Mahle piston | 92,190MM(+0,20) | 5 | 11257840920 | $356.04 | Shop at ECS Tuning | ||||
| 02 | Snap ring | 10 | 11257831889 | $2.30 | Shop at ECS Tuning | |||||
| 03 | Repair kit piston rings | (0) | 10 | 11257840940 | $122.58 | Shop at ECS Tuning | ||||
| 03 | Repair kit piston rings | (+0,20) | 10 | 11257840942 | $211.50 | Shop at ECS Tuning | ||||
