Intake manifold system for BMW 1 Series E87 116i (2005)

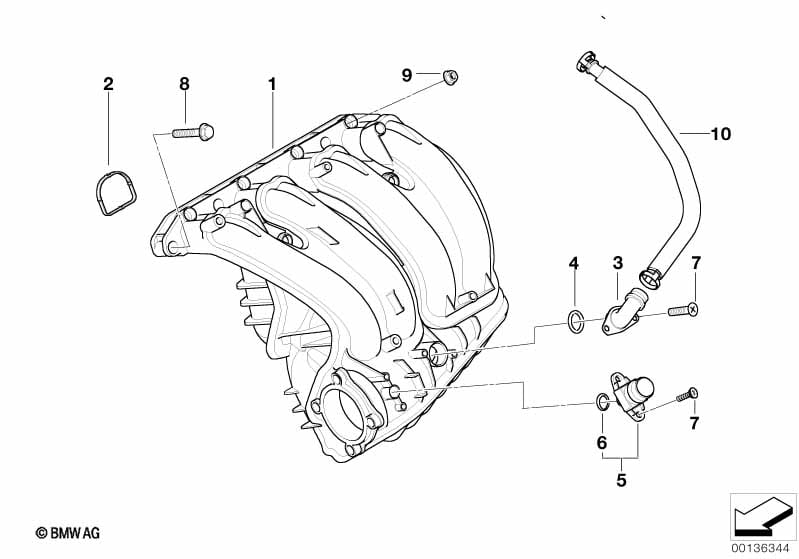

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 11617522938 | Shop at ECS Tuning | ||||||
| 02 | Set of profile gaskets | 1 | 11617528584 | Shop at ECS Tuning | ||||||
| 03 | Angle connector | 1 | 11617526861 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 03 | Angle connector | 1 | 03/2020 | 11617526646 | Shop at ECS Tuning | |||||
| 03 | Angle connector | 1 | 11619884534 | Shop at ECS Tuning | ||||||
| 04 | O-ring | 23,6X3,55 | 1 | 11617533329 | $3.67 | Shop at ECS Tuning | ||||
| 05 | Angle connector | 1 | 11617520866 | Shop at ECS Tuning | ||||||
| 06 | O-ring | 1 | 11617523773 | Shop at ECS Tuning | ||||||
| 07 | Screw | K50X14 | 4 | 11617533330 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M7X50-U1 | 1 | 07119903918 | $0.89 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | AM7 ZNNIV SI | 4 | 07129905541 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Vent hose | 1 | 11157526645 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
