Cylinder head cover for BMW 5 Series E60 535d (2005)

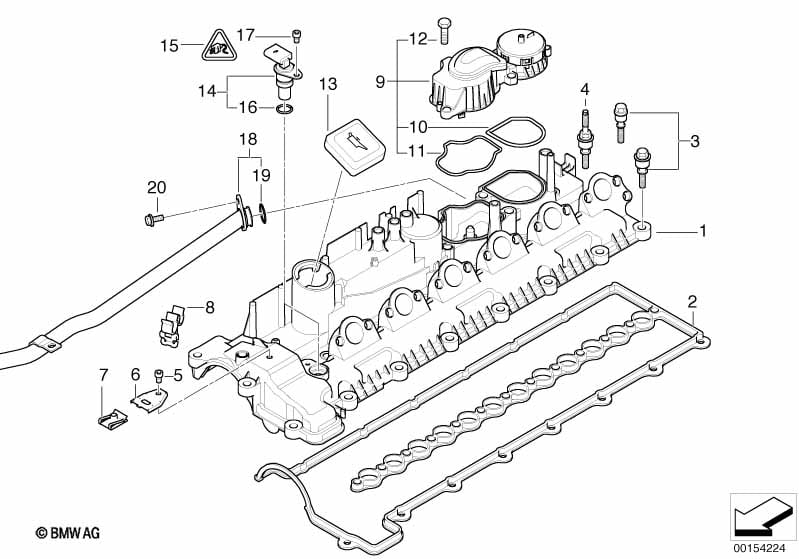

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11127792939 | ENDED | Shop at ECS Tuning | |||||
| 02 | Profile-gasket | 1 | 11127796378 | $39.42 | Shop at ECS Tuning | |||||
| 03 | Set fixing element, exterior | 1 | 11120036235 | $42.62 | Shop at ECS Tuning | |||||
| 04 | Set fixing element, interior | 1 | 11120036237 | $43.40 | Shop at ECS Tuning | |||||
| 05 | ISA screw | M6X12 | 1 | 07129904831 | $1.20 | Shop at ECS Tuning | ||||
| 06 | Metal bracket | 1 | 11127787691 | $2.07 | Shop at ECS Tuning | |||||
| 07 | C-clip nut | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | D=6/8MM | 1 | 11127796023 | Shop at ECS Tuning | |||||
| 09 | Breather | 1 | 11127794175 | Shop at ECS Tuning | ||||||
| 10 | Profile-gasket | 1 | 11127793165 | Shop at ECS Tuning | ||||||
| 11 | Profile-gasket | 1 | 11127793166 | Shop at ECS Tuning | ||||||
| 12 | ASA-Bolt | 4 | 11127803813 | $3.17 | Shop at ECS Tuning | |||||
| 13 | Cap for oil filler | 1 | 11127509328 | $7.78 | Shop at ECS Tuning | |||||
| 14 | Camshaft position sensor | 1 | 13627792256 | $116.05 | Shop at ECS Tuning | |||||
| 15 | Socket housing | 1 | 12527507257 | $2.53 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 3 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| -- | Single conductor seal | 0,75-1,0MM² | 3 | 12521748973 | $0.13 | Shop at ECS Tuning | ||||
| 16 | O-ring | 17X2,8 | 1 | 13627796699 | $1.88 | Shop at ECS Tuning | ||||
| 17 | Plastic bolt | 5,0X19,5 | 1 | 11127805414 | $1.58 | Shop at ECS Tuning | ||||
| 18 | Vent pipe | 1 | 11127792301 | Shop at ECS Tuning | ||||||
| 19 | O-ring | 20,22X3,53 | 1 | 11127798103 | Shop at ECS Tuning | |||||
| 20 | Hex bolt with washer | M6X14-U1-8.8 | 2 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
