Engine acoustics for BMW 5 Series E60 535d (2005)

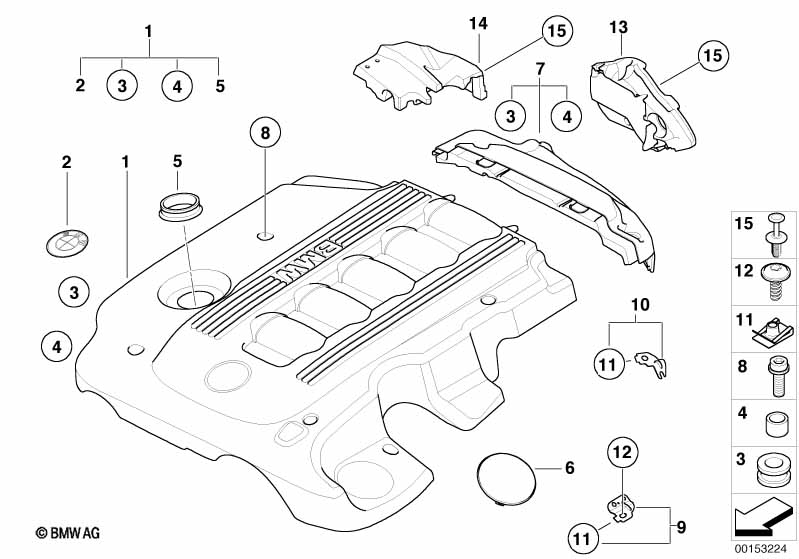

This Engine acoustics technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, acoustic | 1 | 11147791972 | Shop at ECS Tuning | ||||||
| 02 | BMW emblem | 1 | 11147788967 | $11.26 | Shop at ECS Tuning | |||||
| 03 | Rubber grommet | 5 | 11142247316 | $1.12 | Shop at ECS Tuning | |||||
| 04 | Bush | 5 | 11147807626 | $0.56 | Shop at ECS Tuning | |||||
| 05 | Gasket | 1 | 13712248556 | $6.88 | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 11147788915 | $3.54 | Shop at ECS Tuning | |||||
| 07 | Cover, acoustic | 1 | 11147807242 | Shop at ECS Tuning | ||||||
| 08 | Fillister head with washer | M6X20-ZNNID SW | 7 | 07119906086 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Bracket for acoustic cover | 1 | 11147807250 | $6.97 | Shop at ECS Tuning | |||||
| 10 | Bracket for acoustic cover | 1 | 11147807251 | $6.97 | Shop at ECS Tuning | |||||
| 11 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 12 | Screw | 1 | 11717788188 | $0.57 | Shop at ECS Tuning | |||||
| 13 | Acoustic cover,pressure regulating valve | 1 | 11147793088 | Shop at ECS Tuning | ||||||
| 14 | Acoustic cover rear | 1 | 11147794769 | Shop at ECS Tuning | ||||||
| 15 | Expanding rivet | D = 8MM | 2 | 51471911992 | $0.40 | Shop at ECS Tuning |
