Intake manifold-supercharg.air duct/AGR for BMW 5 Series E60 535d (2005)

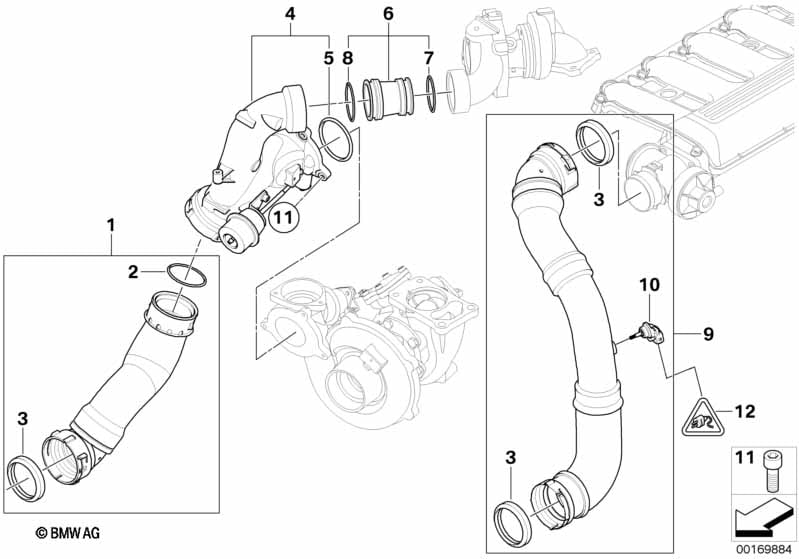

This Intake manifold-supercharg.air duct/AGR technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charge air line | 1 | 11617797698 | +core | Shop at ECS Tuning | |||||
| 02 | Preformed seal | 1 | 11617791470 | $8.20 | Shop at ECS Tuning | |||||
| 03 | Preformed seal | 59,0X67,2X6,2 | 3 | 11617790547 | $8.20 | Shop at ECS Tuning | ||||
| 04 | Connection pipe | 1 | 11657793406 | ENDED | Shop at ECS Tuning | |||||
| 05 | O-ring | 78X2 | 1 | 11657796633 | $2.87 | Shop at ECS Tuning | ||||
| 06 | Connection pipe | 1 | 11657793407 | ENDED | Shop at ECS Tuning | |||||
| 07 | O-ring | D46,99X5,33 | 1 | 11657795046 | $13.63 | Shop at ECS Tuning | ||||
| 08 | O-ring | D50,17X5,33 | 1 | 11657795045 | $13.63 | Shop at ECS Tuning | ||||
| 09 | Charge air line | 1 | 11617799402 | $239.17 | +core | Shop at ECS Tuning | ||||
| 10 | Intake air temperature sensor | 1 | 13627792203 | $25.98 | Shop at ECS Tuning | |||||
| 11 | Internal Torx screw with washer | M6X25-U1-8.8 | 3 | 07129905558 | $0.44 | Shop at ECS Tuning | ||||
| 12 | Plug housing | 2 POL. | 1 | 12521732460 | $6.38 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Flachfederkontakt MDK4 2.8 ELA | 1-2,5 MM²/SN | 2 | 12521737773 | $0.32 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
