Exhaust manifold-AGR for BMW 5 Series E60 535d (2005)

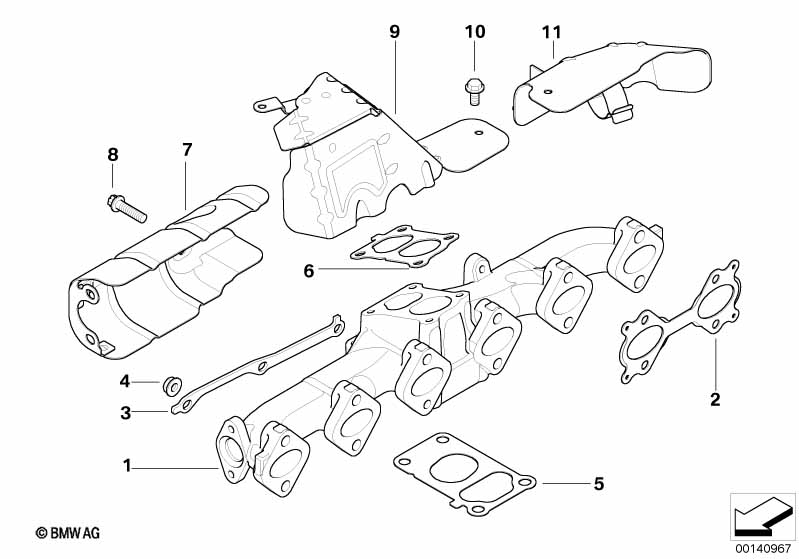

This Exhaust manifold-AGR technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | 1 | 11627794491 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 3 | 11627795091 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Flange nut | M8 | 12 | 11627789015 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Reinforcement plate | 4 | 11627795774 | Shop at ECS Tuning | ||||||
| 04 | Flange nut | M8 | 12 | 11627789015 | $0.43 | Shop at ECS Tuning | ||||
| 05 | Gasket Asbestos Free | 1 | 11657794493 | $48.50 | Shop at ECS Tuning | |||||
| 06 | Gasket Asbestos Free | 1 | 11657794492 | $48.50 | Shop at ECS Tuning | |||||
| 07 | Heat protection shield | 1 | 11627792240 | ENDED | Shop at ECS Tuning | |||||
| 08 | ISA screw | M8X16-8.8-ZNS3 | 1 | 07129903984 | $1.96 | Shop at ECS Tuning | ||||
| 09 | Heat protection shield | 1 | 11627792238 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Heat protection shield | 1 | 11627792239 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 535d Exhaust manifold-AGR?
- This technical diagram illustrates the Exhaust manifold-AGR within the Engine group for the 5 Series E60 535d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust manifold (Part #11627794491).
- Which models use the hardware listed in this Exhaust manifold-AGR?
- The hardware and components featured in the Exhaust manifold-AGR are specific to the 5 Series E60 535d produced during 2005. These technical specifications ensure that parts like the Exhaust manifold (11627794491) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust manifold-AGR assembly?
- Each item in the Exhaust manifold-AGR corresponds to the numbered list below the illustration. For the 5 Series E60 535d, you can identify the Exhaust manifold by locating its position on the schematic, which then links to the official BMW part number 11627794491 for the Engine section.
