Vacuum control exhaust turbocharger for BMW 5 Series E60 535d (2005)

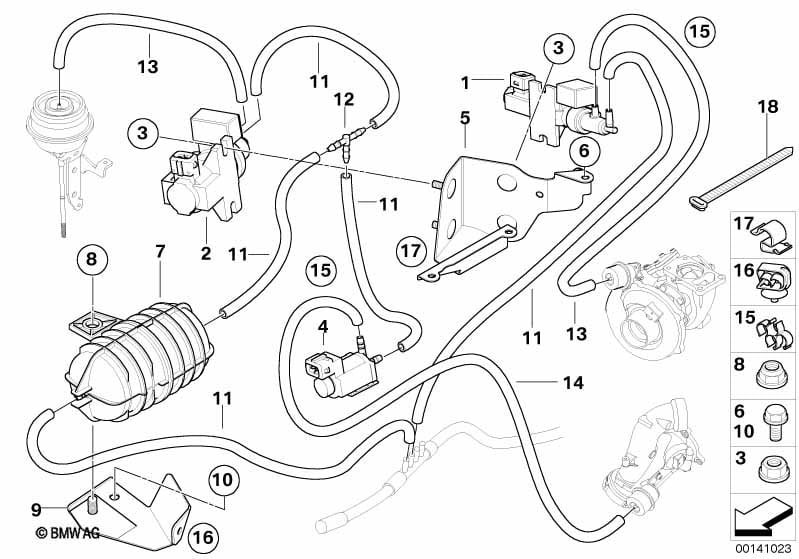

This Vacuum control exhaust turbocharger technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure converter | 1 | 11747796634 | $128.76 | Shop at ECS Tuning | |||||
| 02 | Pressure converter | 1 | 11657793032 | Shop at ECS Tuning | ||||||
| 03 | Hex nut | BM6-8-ZNNIV SI | 4 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 05 | Holder | 1 | 11657792241 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M6X14-U1-8.8 | 3 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Vacuum tank | 1 | 11652247620 | $29.33 | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | M8-8-ZNS3 | 1 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 11657794899 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt with washer | M8X16 | 1 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 12 | T-Connector | 1 | 11721439973 | $1.07 | Shop at ECS Tuning | |||||
| 13 | Vacuum hose blue | 3,5X2,0 | X | 11657796879 | $16.43 | Shop at ECS Tuning | ||||
| 14 | Vacuum hose red | 3,5X2,0 | X | 11657796857 | $16.43 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | 3 | 11747807134 | $1.00 | Shop at ECS Tuning | |||||
| 16 | Cable clip | 3 | 61138350836 | $0.42 | Shop at ECS Tuning | |||||
| 17 | Cable clamp | 1 | 12/2024 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 17 | Clip | 15-19 | 1 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
| 18 | Cable tie | L=200MM/B=3,6MM | 2 | 61131367599 | $0.43 | Shop at ECS Tuning |
