Oil supply exhaust turbocharger for BMW 5 Series E60 535d (2005)

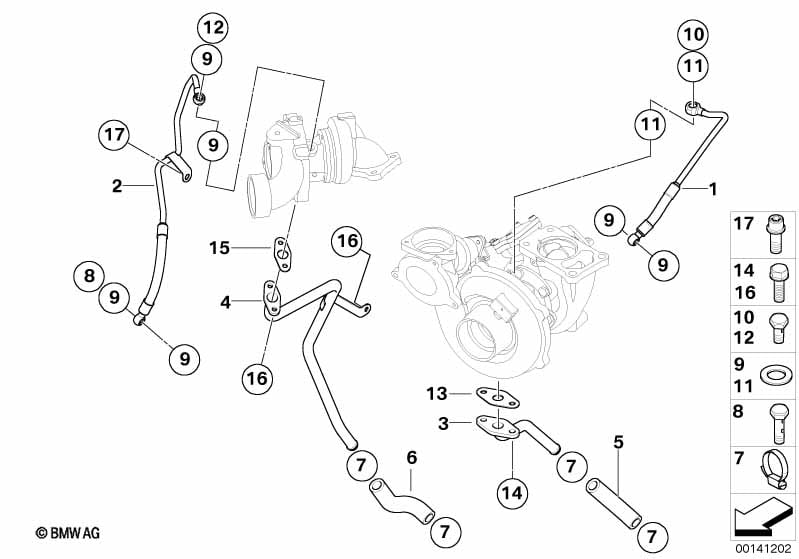

This Oil supply exhaust turbocharger technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pipe | 1 | 11427792245 | Shop at ECS Tuning | ||||||
| 02 | Oil pipe | 1 | 11427792243 | Shop at ECS Tuning | ||||||
| 03 | Return pipe | 1 | 11427792246 | Shop at ECS Tuning | ||||||
| 04 | Return pipe | 1 | 11427792244 | Shop at ECS Tuning | ||||||
| 05 | Hose | 1 | 11422247921 | Shop at ECS Tuning | ||||||
| 06 | Hose | 1 | 11427794552 | +core | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Hollow bolt | M10X1X30 | 1 | 11427792255 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | A10X15-CU | 5 | 07119905041 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Hollow bolt | M12X1,5X24 | 1 | 07119905196 | $21.24 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A12X15-CU | 2 | 07119963129 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Hollow bolt | M10X1-ZNNIV SI | 1 | 07119907291 | Shop at ECS Tuning | |||||
| 13 | Gasket Asbestos Free | 1 | 11427792254 | $3.62 | Shop at ECS Tuning | |||||
| 14 | Fillister-head screw | M8X20-8.8-ZNS3 | 2 | 07119904375 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Gasket Asbestos Free | 1 | 11422246091 | $1.19 | Shop at ECS Tuning | |||||
| 16 | Hex bolt | M6X14-ZNNIV SI | 3 | 07119905964 | Shop at ECS Tuning | |||||
| 17 | ISA screw | M8X16-8.8-ZNS3 | 1 | 07129903984 | $1.96 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
