Turbocharger for BMW 5 Series E60 535d (2005)

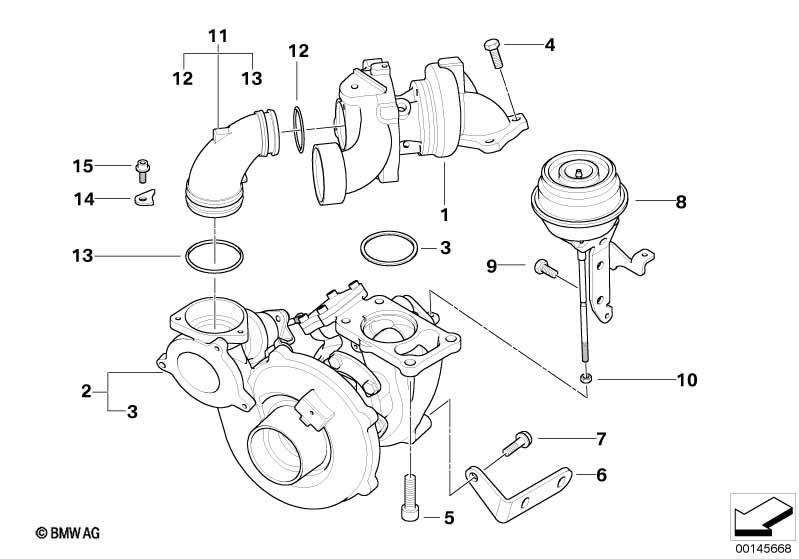

This Turbocharger technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Please always observe repair instructions 11 65 020! |
||||||||||
| 01 | Turbo charger | 1 | 11657794571 | $954.46 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Turbolader additive diesel/gasoline | 17ML | 1 | 83195B305D6 | Shop at ECS Tuning | |||||
| -- | Gasket Asbestos Free | 1 | 11422246091 | $1.19 | Shop at ECS Tuning | |||||
| -- | Return pipe | 1 | 11427792244 | Shop at ECS Tuning | ||||||
| -- | Hose | 1 | 11427794552 | +core | Shop at ECS Tuning | |||||
| -- | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 02 | Turbo charger | 1 | 11657794572 | $2030.19 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Turbolader additive diesel/gasoline | 17ML | 1 | 83195B305D6 | Shop at ECS Tuning | |||||
| -- | Hose | 1 | 11422247921 | Shop at ECS Tuning | ||||||
| -- | Return pipe | 1 | 11427792246 | Shop at ECS Tuning | ||||||
| -- | Gasket Asbestos Free | 1 | 11427792254 | $3.62 | Shop at ECS Tuning | |||||
| -- | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Spacer ring | 1 | 11657798458 | $43.56 | Shop at ECS Tuning | |||||
| 04 | Hexagon collar screw | M8X22 | 4 | 11657794545 | $9.37 | Shop at ECS Tuning | ||||
| 05 | Screw | M10X25 | 4 | 02/2025 | 11652243402 | $5.37 | Shop at ECS Tuning | |||
| 05 | Screw | M10X25 | 4 | 07145B5ABD4 | Shop at ECS Tuning | |||||
| 06 | Support | 1 | 11657792237 | Shop at ECS Tuning | ||||||
| 07 | Star-socket screw | M8X18 | 3 | 07119909449 | Shop at ECS Tuning | |||||
| 08 | Vacumm box | 1 | 11657794887 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Hex nut | AM6-A2-70 | 2 | 07129905826 | $2.61 | Shop at ECS Tuning | ||||
| 11 | Connection pipe | 1 | 11657794573 | ENDED | Shop at ECS Tuning | |||||
| 12 | O-ring | D40,64X5,33 | 1 | 11657795047 | $13.63 | Shop at ECS Tuning | ||||
| 13 | O-ring | D50,17X5,33 | 1 | 11657795045 | $13.63 | Shop at ECS Tuning | ||||
| 14 | Mounting panel | 4 | 11657794574 | $17.80 | Shop at ECS Tuning | |||||
| 15 | ISA screw | M6X16-8.8-ZNNIV | 4 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
