Crankcase-Ventilation/oil separator for BMW 3 Series E46 M3 (2005)

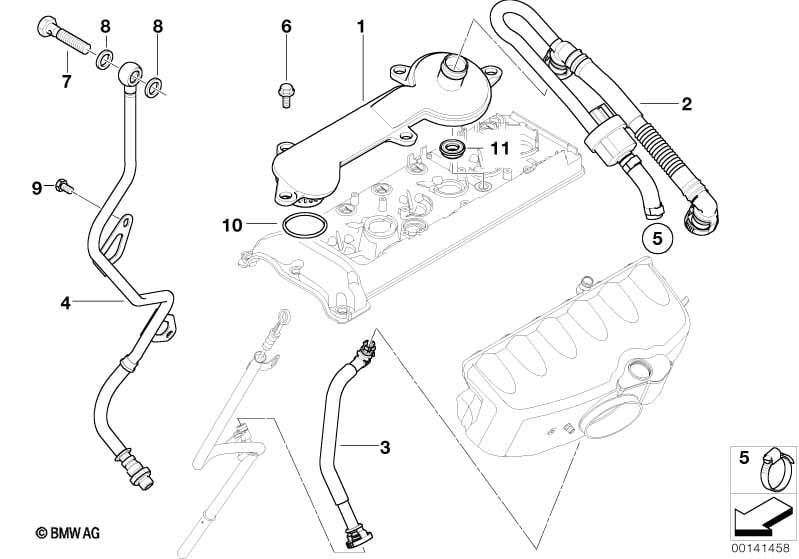

This Crankcase-Ventilation/oil separator technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sequential M transmission Drivelogic |
S793A=No |
|||||||||
| 01 | Oil separator | 1 | 09/2004 | 11157840446 | $33.39 | +core | Shop at ECS Tuning | |||
| 02 | Vent hose | 1 | 09/2004 | 11157834056 | $90.46 | Shop at ECS Tuning | ||||
| 03 | Vent hose | 1 | 09/2004 | 11617831930 | $45.18 | Shop at ECS Tuning | ||||
| 04 | Return pipe | 1 | 09/2004 | 11157832781 | $99.25 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 15,0-17,5 | 1 | 09/2004 | 16121180241 | $1.76 | Shop at ECS Tuning | |||
| 06 | Hexagon screw with flange | M6X20 | 5 | 09/2004 | 07119905546 | $6.73 | Shop at ECS Tuning | |||
| 07 | Hollow bolt | 1 | 09/2004 | 07119905427 | $2.25 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | A12X15-CU | 2 | 09/2004 | 07119963129 | $0.11 | Shop at ECS Tuning | |||
| 09 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 09/2004 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 10 | O-ring | 34X4 | 1 | 09/2004 | 11157830966 | $3.27 | Shop at ECS Tuning | |||
| 11 | Profile-gasket | 1 | 09/2004 | 11157832119 | $6.08 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 Crankcase-Ventilation/oil separator?
- This technical diagram illustrates the Crankcase-Ventilation/oil separator within the Engine group for the 3 Series E46 M3 produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Oil separator (Part #11157840446).
- Which models use the hardware listed in this Crankcase-Ventilation/oil separator?
- The hardware and components featured in the Crankcase-Ventilation/oil separator are specific to the 3 Series E46 M3 produced during 2005. These technical specifications ensure that parts like the Oil separator (11157840446) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankcase-Ventilation/oil separator assembly?
- Each item in the Crankcase-Ventilation/oil separator corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the Oil separator by locating its position on the schematic, which then links to the official BMW part number 11157840446 for the Engine section.
