Engine acoustics for BMW 7 Series E65 750i (2008)

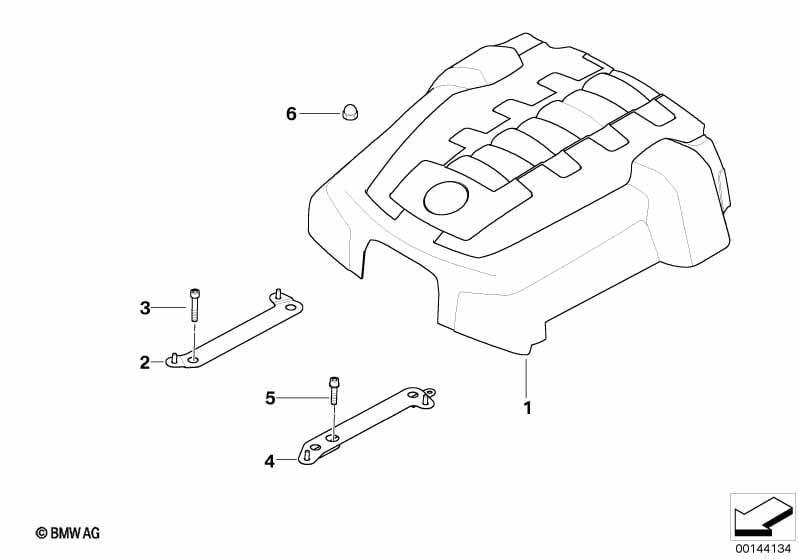

This Engine acoustics technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound protection cap | 1 | 11617535151 | $351.38 | Shop at ECS Tuning | |||||
| 02 | Bracket for sound insulation hood | ZYL. 1-4 | 1 | 11617545202 | $33.25 | Shop at ECS Tuning | ||||
| 03 | Isa screw with washer | M6X40-U2-8.8 | 2 | 07129905505 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Bracket for sound insulation hood | ZYL. 5-8 | 1 | 11617545203 | $33.25 | Shop at ECS Tuning | ||||
| 05 | ISA screw | M6X20-8.8-ZNNIV | 2 | 07129901130 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Cap nut | M6 | 4 | 11617549043 | $3.23 | Shop at ECS Tuning |
