Intake manifold - vacuum control for BMW 5 Series E60 535d (2005)

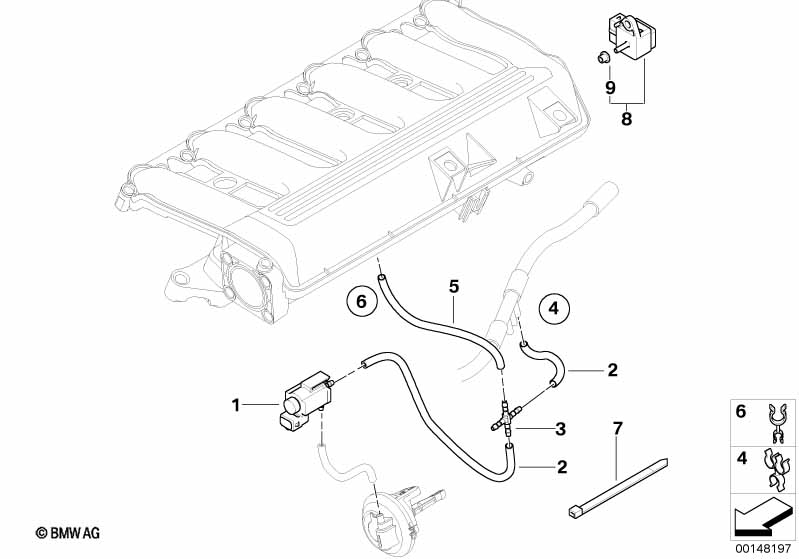

This Intake manifold - vacuum control technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 02 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 03 | T-Connector | 1 | 05/2005 | 11721439973 | $1.07 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | 3 | 11742248843 | $1.18 | Shop at ECS Tuning | |||||
| 05 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | 1 | 61138350839 | ENDED | Shop at ECS Tuning | |||||
| 07 | Cable tie | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 08 | Fuel injection system-ressure sensor | 1 | 13627792260 | $49.45 | Shop at ECS Tuning | |||||
| 09 | Grommet | 1 | 13627792261 | $3.67 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 535d Intake manifold - vacuum control?
- This technical diagram illustrates the Intake manifold - vacuum control within the Engine group for the 5 Series E60 535d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Electr.valve (Part #11747810831).
- Which models use the hardware listed in this Intake manifold - vacuum control?
- The hardware and components featured in the Intake manifold - vacuum control are specific to the 5 Series E60 535d produced during 2005. These technical specifications ensure that parts like the Electr.valve (11747810831) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold - vacuum control assembly?
- Each item in the Intake manifold - vacuum control corresponds to the numbered list below the illustration. For the 5 Series E60 535d, you can identify the Electr.valve by locating its position on the schematic, which then links to the official BMW part number 11747810831 for the Engine section.
