Oil pan/oil level indicator for BMW 5 Series E60 530xd (2005)

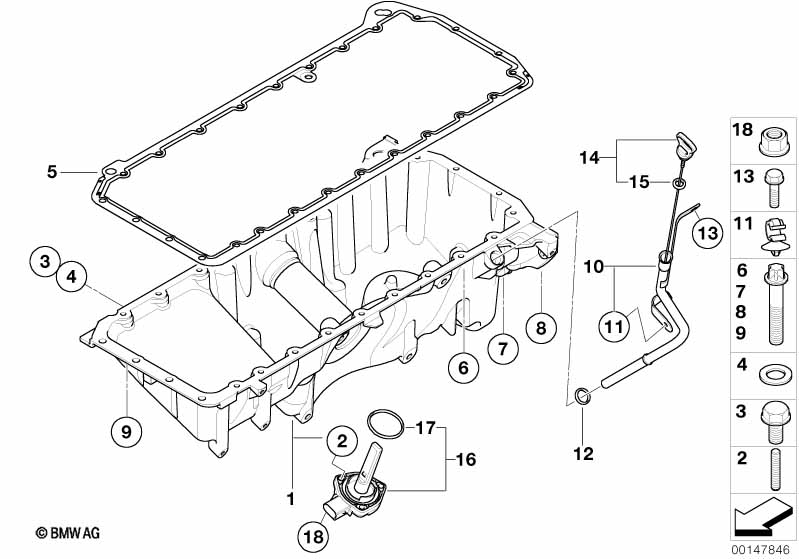

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11137806222 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Stud bolt | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Gasket Steel | 1 | 02/2006 | 11137798122 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Torx bolt | M6X22 | 17 | 02/2006 | 11137800619 | $0.67 | Shop at ECS Tuning | |||
| only applies to crank case with cast part no.: 7 792 822 up to AI07 |
||||||||||
| -- | Torx bolt | M8X30 | 4 | 02/2006 | 11137800621 | $1.08 | ENDED | Shop at ECS Tuning | ||
| only applies to crank case with cast part no.: 7 792 822 up to AI07 |
||||||||||
| -- | Torx bolt | M6X60-ZNNIV SI | 2 | 02/2006 | 11137800622 | $1.08 | Shop at ECS Tuning | |||
| only applies to crank case with cast part no.: 7 792 822 up to AI07 |
||||||||||
| -- | Torx bolt | M6X100 | 2 | 02/2006 | 11137800623 | $1.65 | Shop at ECS Tuning | |||
| only applies to crank case with cast part no.: 7 792 822 up to AI07 |
||||||||||
| 06 | Torx bolt | M6X22 | 17 | 11137800619 | $0.67 | Shop at ECS Tuning | ||||
| 07 | Torx bolt | M6X60-ZNNIV SI | 2 | 11137800622 | $1.08 | Shop at ECS Tuning | ||||
| 08 | Torx bolt | M6X100 | 2 | 11137800623 | $1.65 | Shop at ECS Tuning | ||||
| 09 | ASA-Bolt | M8X30 | 4 | 11138592611 | Shop at ECS Tuning | |||||
| 10 | Guide tube | 1 | 11437793022 | Shop at ECS Tuning | ||||||
| 11 | Tubing support | D10-11 | 1 | 13532245954 | Shop at ECS Tuning | |||||
| 12 | O-ring | 11,7X3 | 1 | 11437794484 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M6X14-U1-8.8 | 1 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Dipstick | 1 | 11437793023 | Shop at ECS Tuning | ||||||
| 15 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| 16 | Oil levelling sensor | 1 | 12617508003 | $163.50 | Shop at ECS Tuning | |||||
| 17 | Gasket ring | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 18 | Hex nut | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
