Camshaft Camshaft for BMW 700LS (1964)

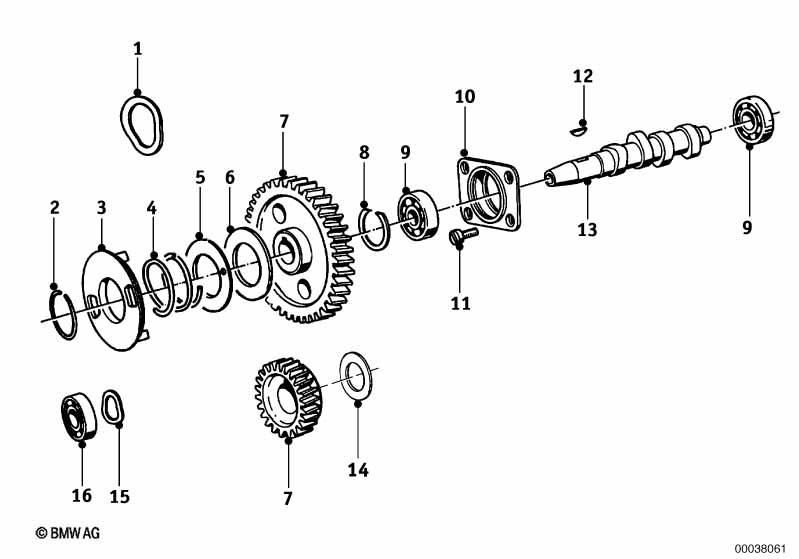

This Camshaft Camshaft technical drawing provides a detailed breakdown of the assembly for the 700LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring washer | 1 | 11310031707 | ENDED | Shop at ECS Tuning | |||||
| 03 | Breather | 1 | 11150031709 | ENDED | Shop at ECS Tuning | |||||
| 08 | Lock Ring | 47X1,75 | 1 | 07119906808 | Shop at ECS Tuning | |||||
| 09 | Grooved ball bearing | 25X47X12 | 1 | 07119981047 | $15.65 | ENDED | Shop at ECS Tuning | |||
| 09 | Grooved ball bearing | 20X42X12 | 1 | 11141460807 | +core | Shop at ECS Tuning | ||||
| 10 | Bushing | 1 | 11310030850 | ENDED | Shop at ECS Tuning | |||||
| 11 | Screw | 4 | 11310030104 | ENDED | Shop at ECS Tuning | |||||
| 13 | Camshaft Camshaft | 1 | 11310031067 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
