Cylinder head cover for BMW 3 Series E90 320si (2006)

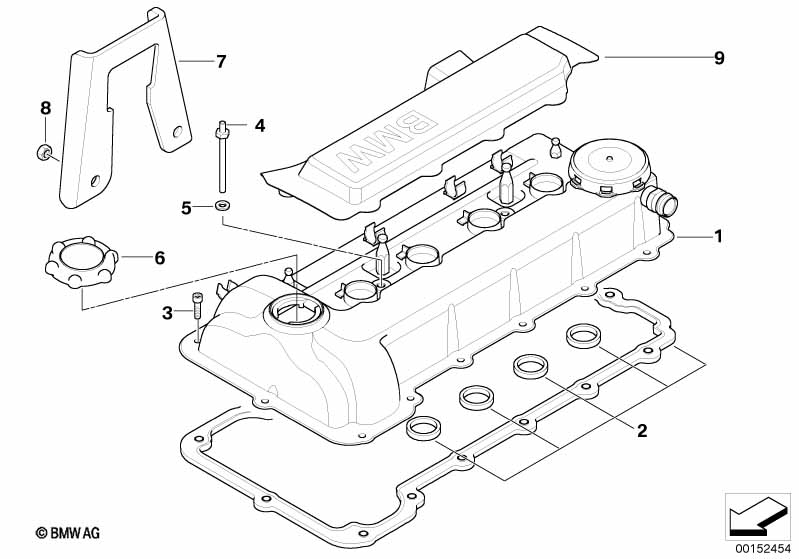

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cyl.head cover complete | 1 | 11127565742 | ENDED | Shop at ECS Tuning | |||||
| 02 | Profile-gasket | 1 | 11120033999 | Shop at ECS Tuning | ||||||
| 03 | Isa screw with washer | M6X20 | 14 | 11127565288 | ENDED | Shop at ECS Tuning | ||||
| 04 | Threaded bolt | M6X70 | 2 | 11128291308 | ENDED | Shop at ECS Tuning | ||||
| 05 | Washer-gasket | 2 | 11127563524 | ENDED | Shop at ECS Tuning | |||||
| 06 | Cap for oil filler | 2 | 11127832157 | $16.16 | Shop at ECS Tuning | |||||
| 07 | Bracket, cable harness | 1 | 11127777462 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Ignition coil covering | 1 | 11127777364 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
