Intake manifold system-AGR for BMW 3 Series E90 330i (2008)

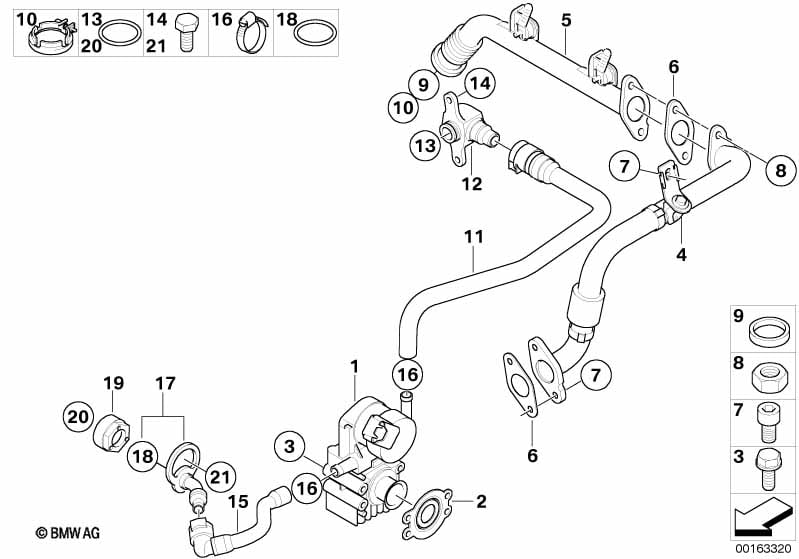

This Intake manifold system-AGR technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | EGR-valve | 1 | 11717548415 | Shop at ECS Tuning | ||||||
| 01 | EGR-valve | 1 | 11718479589 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket | 1 | 11717557848 | $17.67 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X65-U1-ZNS3 | 4 | 07119903867 | $0.96 | Shop at ECS Tuning | ||||
| 04 | Pipe | 1 | 11717574954 | Shop at ECS Tuning | ||||||
| 05 | Pipe | 1 | 11717574953 | Shop at ECS Tuning | ||||||
| 06 | Gasket | 2 | 11717504484 | $3.62 | Shop at ECS Tuning | |||||
| 07 | Fillister-head screw | M6X18-10.9-ZNS3 | 3 | 07119906651 | Shop at ECS Tuning | |||||
| 08 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | 1 | 11717559152 | Shop at ECS Tuning | ||||||
| 10 | Clamp | 1 | 11717548418 | Shop at ECS Tuning | ||||||
| 11 | Coolant hose | 1 | 11717576083 | Shop at ECS Tuning | ||||||
| 12 | Connector | 1 | 11717557360 | Shop at ECS Tuning | ||||||
| 13 | O-ring | 18X2,65 | 1 | 11717577814 | Shop at ECS Tuning | |||||
| 14 | Hex bolt with washer | M6X18-U1 | 2 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Coolant hose | 1 | 11717557364 | Shop at ECS Tuning | ||||||
| 16 | Hose clamp | L15-19 | 2 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 17 | Connector | 1 | 11717557362 | Shop at ECS Tuning | ||||||
| 18 | O-ring | 14,5X2,65 | 1 | 11717577813 | Shop at ECS Tuning | |||||
| 19 | Connector | 1 | 11717557361 | Shop at ECS Tuning | ||||||
| 20 | Washer-gasket | 14X32 | 1 | 11117539921 | $4.62 | Shop at ECS Tuning | ||||
| 21 | Hex bolt | M5X14 | 1 | 07119904337 | $0.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 330i Intake manifold system-AGR?
- This technical diagram illustrates the Intake manifold system-AGR within the Engine group for the 3 Series E90 330i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the EGR-valve (Part #11717548415).
- Which models use the hardware listed in this Intake manifold system-AGR?
- The hardware and components featured in the Intake manifold system-AGR are specific to the 3 Series E90 330i produced during 2008. These technical specifications ensure that parts like the EGR-valve (11717548415) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold system-AGR assembly?
- Each item in the Intake manifold system-AGR corresponds to the numbered list below the illustration. For the 3 Series E90 330i, you can identify the EGR-valve by locating its position on the schematic, which then links to the official BMW part number 11717548415 for the Engine section.
