Vacuum control exhaust turbocharger for BMW 1 Series E88 135i (2010)

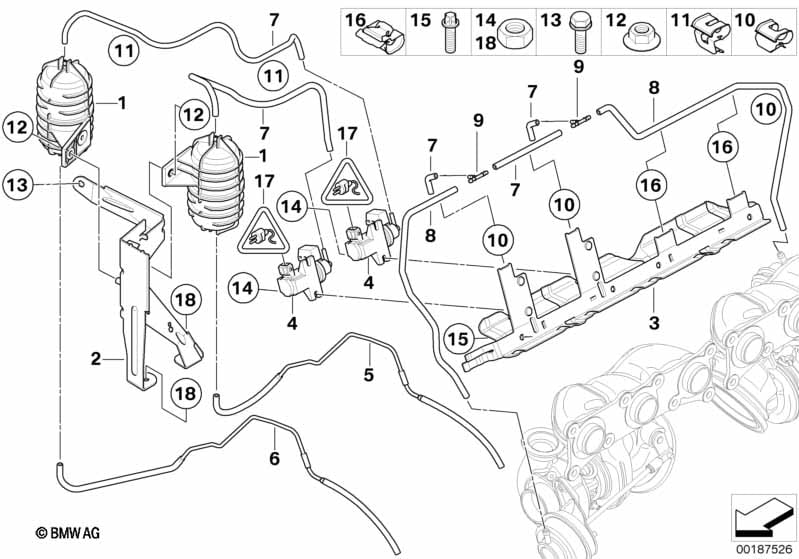

This Vacuum control exhaust turbocharger technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vacuum tank | 2 | 11652247620 | $29.33 | Shop at ECS Tuning | |||||
| 02 | Bracket, vacuum reservoir | 1 | 13717558322 | $45.29 | Shop at ECS Tuning | |||||
| 03 | Bracket with heat shield | 1 | 13717649693 | Shop at ECS Tuning | ||||||
| 04 | Pressure converter | 2 | 11747626350 | Shop at ECS Tuning | ||||||
| 05 | Vacuum pipe | 1 | 13717558227 | $16.78 | Shop at ECS Tuning | |||||
| 06 | Vacuum pipe | 1 | 11657565963 | $27.94 | Shop at ECS Tuning | |||||
| 07 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 08 | Vacuum hose black | 3,5X2,0 | X | 11657803732 | $16.43 | Shop at ECS Tuning | ||||
| 09 | T-Connector | 2 | 11721439973 | $1.07 | Shop at ECS Tuning | |||||
| 10 | Clip | 2 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 11 | Cable clip | 2 | 13717557970 | $1.16 | Shop at ECS Tuning | |||||
| 12 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X14-U1-8.8 | 1 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Hex nut | BM6-8-ZNNIV SI | 4 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 15 | ASA-Bolt | M6X16 ZNNIV SI | 4 | 07129905905 | Shop at ECS Tuning | |||||
| 16 | Cable clamp | 2 | 11787547198 | $1.25 | Shop at ECS Tuning | |||||
| 17 | Socket housing | 2 POL. | 2 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,5- 1,0 MM²/AG | 2 | 12520143433 | $4.00 | Shop at ECS Tuning | ||||
| 18 | Hex nut | M6-8-ZNS3 | 2 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
