Cylinder Head Attached Parts for BMW 1 Series E87 LCI 118i (2011)

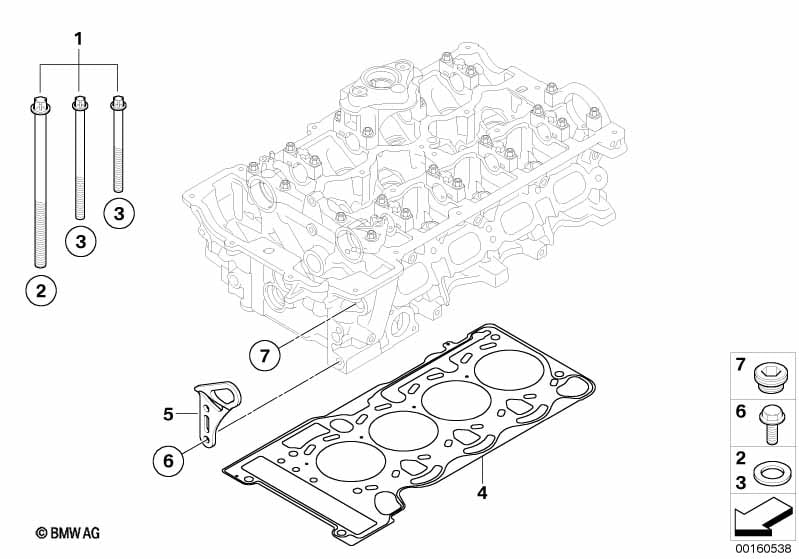

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set Bolt Cylinder Head | TORX M9/M10 | 1 | 11127578077 | Shop at ECS Tuning | |||||
| 02 | Washer | 6 | 11127550856 | $0.65 | Shop at ECS Tuning | |||||
| 03 | Washer | 6 | 11127550855 | $0.65 | Shop at ECS Tuning | |||||
| 04 | Cylinder Head Gasket Asbestos-Free | 0,50MM | 1 | 11127563412 | Shop at ECS Tuning | |||||
| 04 | Cylinder Head Gasket Asbestos-Free | 0,80MM (+0,3) | 1 | 11127578093 | Shop at ECS Tuning | |||||
| 05 | Holder | 1 | 11127568430 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Screw Plug With Gasket Ring | M18X1,5 | 1 | 11317502048 | $3.68 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 118i Cylinder Head Attached Parts?
- This technical diagram illustrates the Cylinder Head Attached Parts within the Engine group for the 1 Series E87 LCI 118i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Set Bolt Cylinder Head (Part #11127578077).
- Which models use the hardware listed in this Cylinder Head Attached Parts?
- The hardware and components featured in the Cylinder Head Attached Parts are specific to the 1 Series E87 LCI 118i produced during 2011. These technical specifications ensure that parts like the Set Bolt Cylinder Head (11127578077) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head Attached Parts assembly?
- Each item in the Cylinder Head Attached Parts corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 118i, you can identify the Set Bolt Cylinder Head by locating its position on the schematic, which then links to the official BMW part number 11127578077 for the Engine section.
