Cylinder head, electr. add-on parts for BMW 1 Series E82 120i (2013)

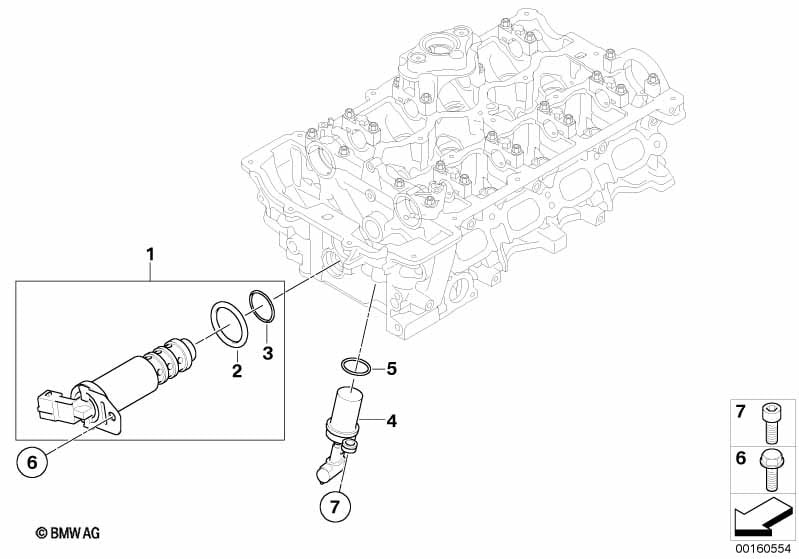

This Cylinder head, electr. add-on parts technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Solenoid valve (SOLV) | 2 | 11367584115 | Shop at ECS Tuning | ||||||
| 02 | O-ring | 24X4,5 | 2 | 11367548320 | $6.08 | Shop at ECS Tuning | ||||
| 03 | O-ring | 20X1,5 | 2 | 11367561852 | $4.12 | Shop at ECS Tuning | ||||
| 04 | Camshaft position sensor | 2 | 13627525014 | $95.30 | +core | Shop at ECS Tuning | ||||
| 05 | O-ring | 17X3 | 2 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Fillister-head screw | M6X16ZNNIV SI | 2 | 13627545338 | $0.47 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
