Valve timing gear - camshaft/valves for BMW 3 Series E91 318i (2008)

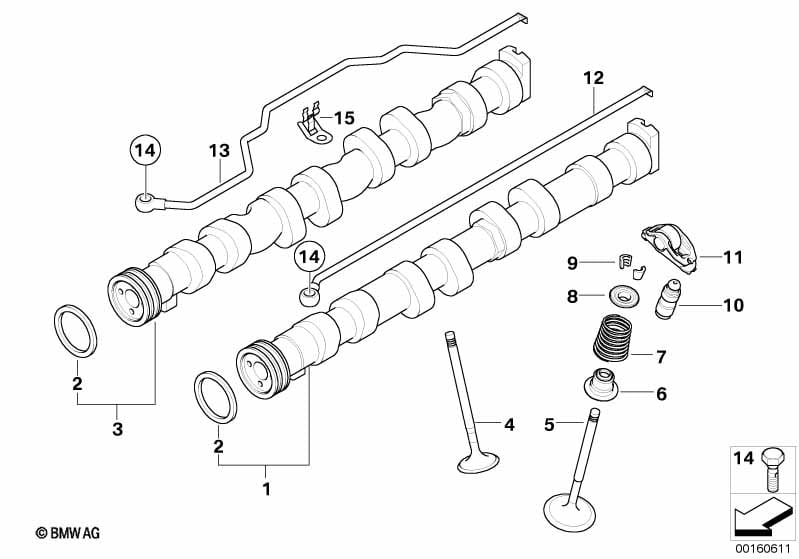

This Valve timing gear - camshaft/valves technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inlet camshaft | 1 | 11317567238 | Shop at ECS Tuning | ||||||
| 02 | Rectangring | 4 | 11311705512 | $5.62 | +core | Shop at ECS Tuning | ||||
| 03 | Camshaft exhaust | 1 | 11317563364 | Shop at ECS Tuning | ||||||
| 04 | Exhaust valve | 28,0/5,96MM | 8 | 11347573840 | $44.04 | Shop at ECS Tuning | ||||
| 05 | Intake valve | 8 | 11347548280 | Shop at ECS Tuning | ||||||
| 06 | Repair kit valve seal ring | 1 | 11340035888 | Shop at ECS Tuning | ||||||
| 07 | Valve spring | 16 | 11347563460 | $7.88 | Shop at ECS Tuning | |||||
| 08 | Upper spring plate | 16 | 11347614134 | Shop at ECS Tuning | ||||||
| 09 | Valve collet | D=6 | 32 | 11341461405 | $1.34 | Shop at ECS Tuning | ||||
| 10 | Alignment element | 16 | 11337548690 | $21.42 | Shop at ECS Tuning | |||||
| 11 | Roller drag lever | 16 | 11337542421 | Shop at ECS Tuning | ||||||
| 12 | Oil spray tube, inlet side | 1 | 11127537055 | Shop at ECS Tuning | ||||||
| 13 | Oil spray tube, output side | 1 | 11127537056 | Shop at ECS Tuning | ||||||
| 14 | Hollow bolt | M7X16 | 2 | 11127523715 | Shop at ECS Tuning | |||||
| 15 | Fixing clamp | 4 | 11121706536 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
