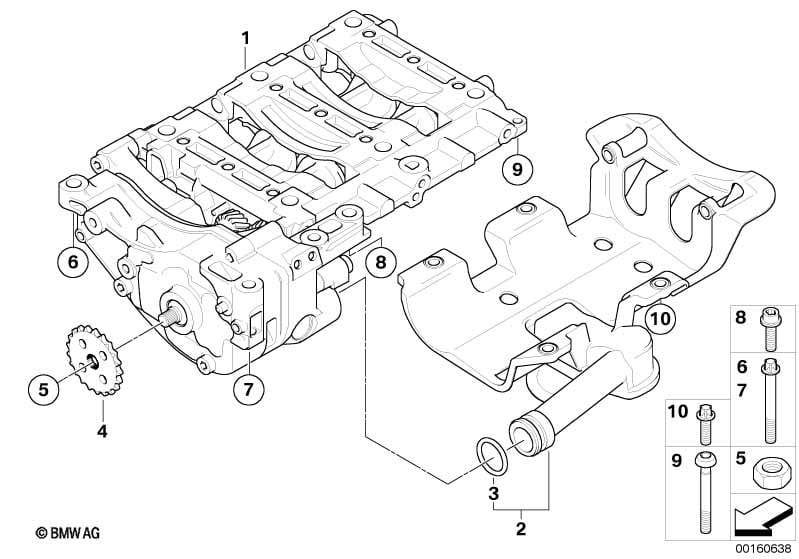

Oil pump and compensating shaft unit for BMW 3 Series E93 LCI 320i (2013)
This Oil pump and compensating shaft unit technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump and compensating shaft unit | 1 | 11415A19409 | Shop at ECS Tuning | ||||||
| 02 | Suction pipe | 1 | 11417564233 | +core | Shop at ECS Tuning | |||||
| 03 | O-ring | 22,2X3,15 | 1 | 11417507756 | $1.83 | Shop at ECS Tuning | ||||
| 04 | Sprocket | 1 | 11317507551 | Shop at ECS Tuning | ||||||
| 05 | Hex nut | M10X1-LH | 1 | 11417506378 | Shop at ECS Tuning | |||||
| 06 | Torx bolt | M8X55 | 1 | 11277505697 | Shop at ECS Tuning | |||||
| 07 | Torx bolt | M8X135 | 1 | 11417547084 | Shop at ECS Tuning | |||||
| 08 | ISA screw | M8X40-Z1 | 1 | 07129904552 | Shop at ECS Tuning | |||||
| 09 | Torx bolt | M8X83 | 6 | 11277504379 | Shop at ECS Tuning | |||||
| 10 | ISA screw | M6X20-U1-8.8 PH | 6 | 07129905061 | $0.96 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
