Waterpump - Thermostat for BMW 3 Series E92 320i (2010)

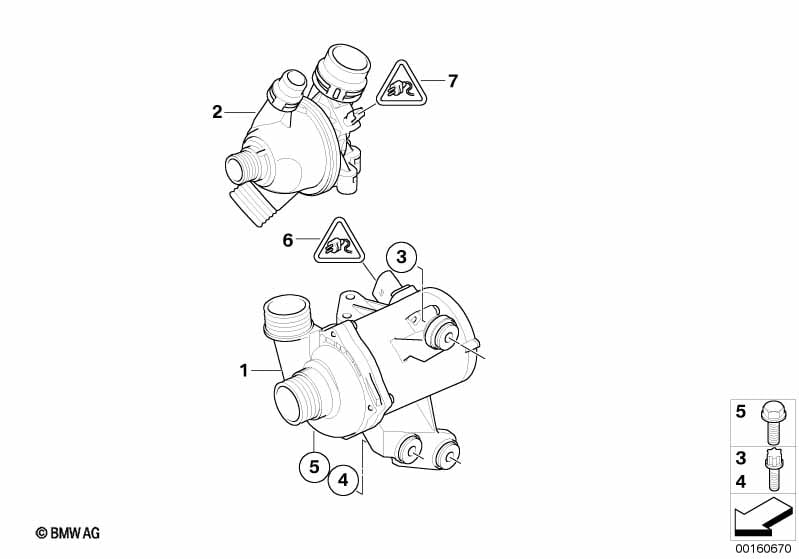

This Waterpump - Thermostat technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump, electric | 1 | 11517586929 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 01 | Coolant pump, electric | 1 | 11517586927 | Shop at ECS Tuning | ||||||
| 02 | Thermostat | 1 | 11538671515 | Shop at ECS Tuning | ||||||
| 03 | ASA-Bolt | M8X43 | 1 | 07129907370 | Shop at ECS Tuning | |||||
| 04 | ASA-Bolt | M10X35 - ZNS3 | 2 | 07129906040 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 06 | Socket housing | 4 POL. | 1 | 12527549804 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 1,0-2,5MM² /SN | 4 | 12521433216 | $0.50 | Shop at ECS Tuning | ||||
| -- | Socket terminal SLK 2.8 ELA | 4,0 MM? | 4 | 12527505636 | $0.50 | Shop at ECS Tuning | ||||
| 07 | Socket housing | 1 | 12527507529 | $2.53 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MLK 1.2 strand sealing | 0,35-0,5MM² AG | 2 | 61138722290 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 0,22-1,0MM² | 1 | 12527503411 | $0.18 | Shop at ECS Tuning | ||||
