Vacuum pump for BMW 1 Series E88 120i (2013)

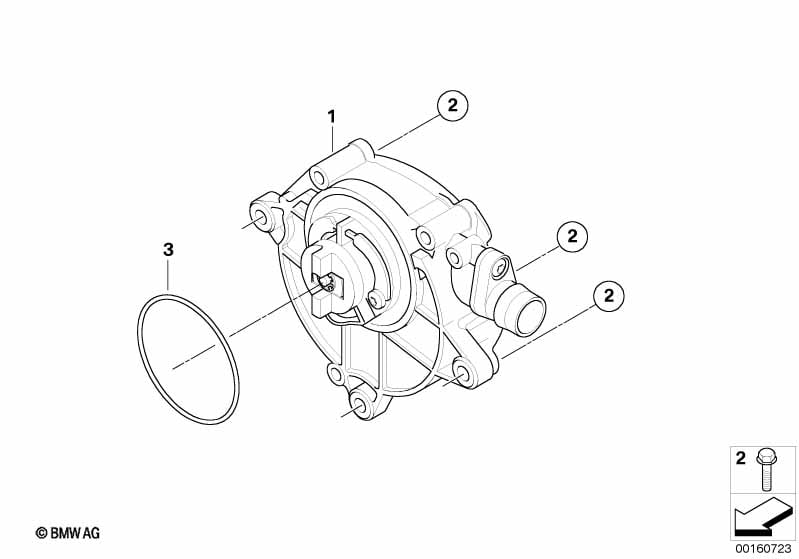

This Vacuum pump technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vacuum pump | 1 | 11667547024 | +core | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M6X25-ZNNIV SI | 3 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 03 | O-ring | 58,42X2,62 | 1 | 11667576823 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 120i Vacuum pump?
- This technical diagram illustrates the Vacuum pump within the Engine group for the 1 Series E88 120i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Vacuum pump (Part #11667547024).
- Which models use the hardware listed in this Vacuum pump?
- The hardware and components featured in the Vacuum pump are specific to the 1 Series E88 120i produced during 2013. These technical specifications ensure that parts like the Vacuum pump (11667547024) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum pump assembly?
- Each item in the Vacuum pump corresponds to the numbered list below the illustration. For the 1 Series E88 120i, you can identify the Vacuum pump by locating its position on the schematic, which then links to the official BMW part number 11667547024 for the Engine section.
